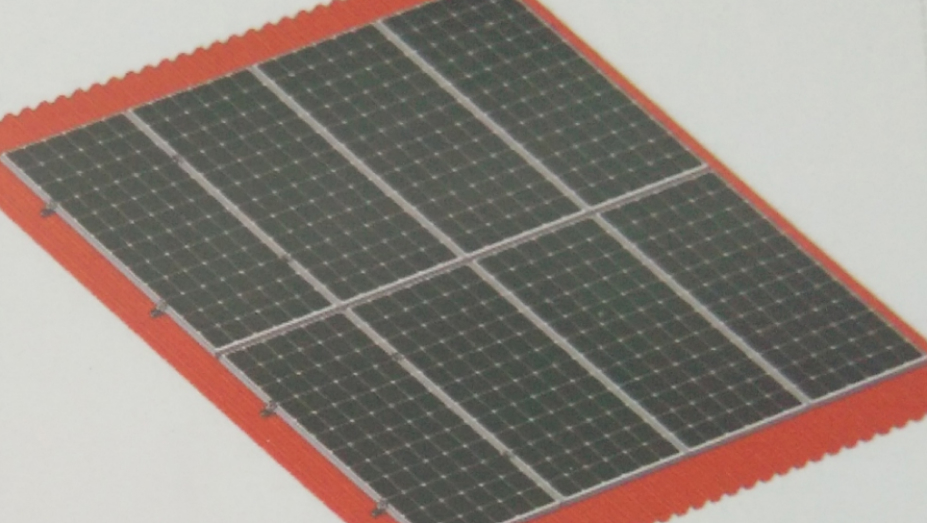

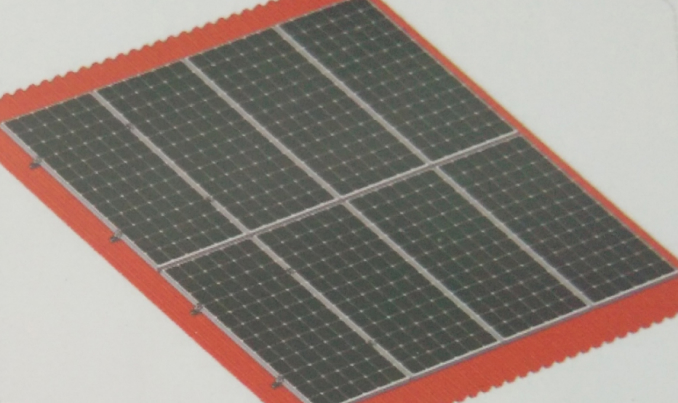

Color steel tile roof bracket - U-shaped guide rail
Overview

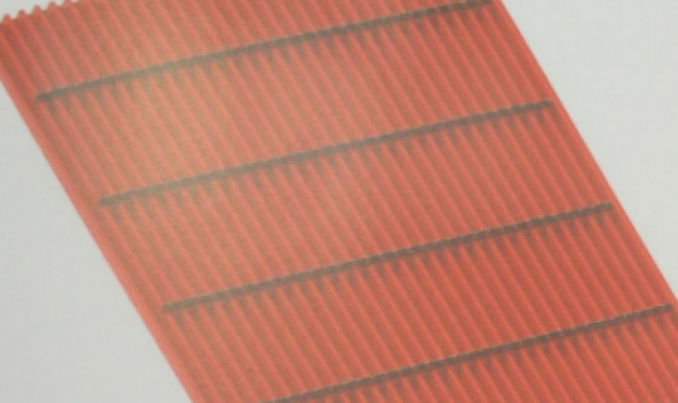

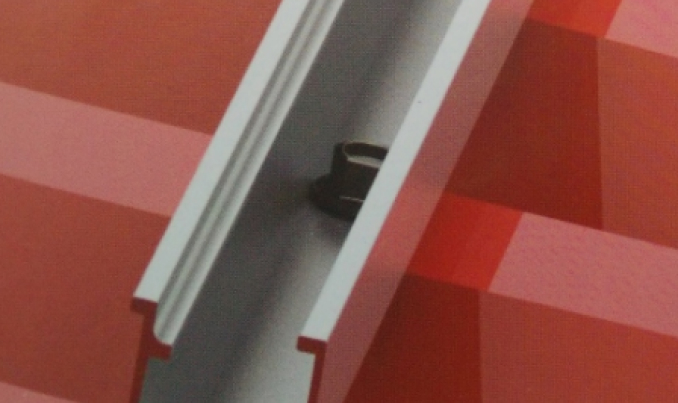

Fix the U-shaped guide rail on the colored steel tile with self tapping screws

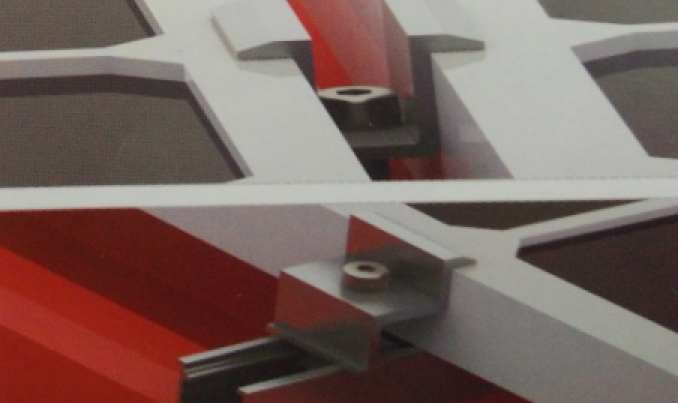

      Fix the component onto the U-shaped guide rail using pressure blocks and hexagonal bolts

Product Features

Advantage

Parameter

Adapt to the scene

Advantage
beautiful
  • Beautiful appearance
Easy to install
  • Installation is simple, convenient, and convenient
Diversified design
  • We have a rich and diverse design that rejects monotony
Lightweight
  • Weight reduction
Saving installation materials
  • Saving installation materials
Parameter
Installation location
Color steel tile roof
Bevel bracket components
Based on actual needs
Pulling force
1000N
Wind bearing capacity
40m/s
Snow load bearing capacity
70kg/m2
Support type
Frame
Material
Aluminum
Color
Natural color
Service life
25 years

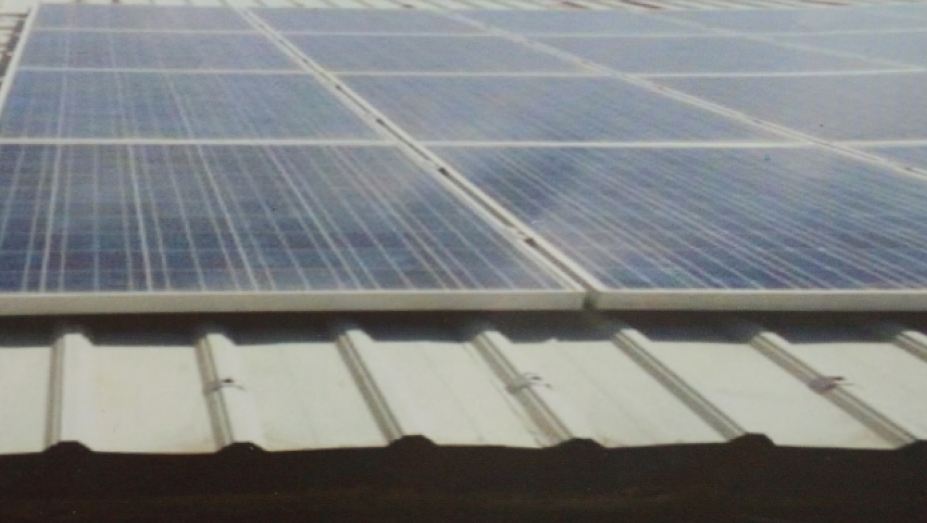

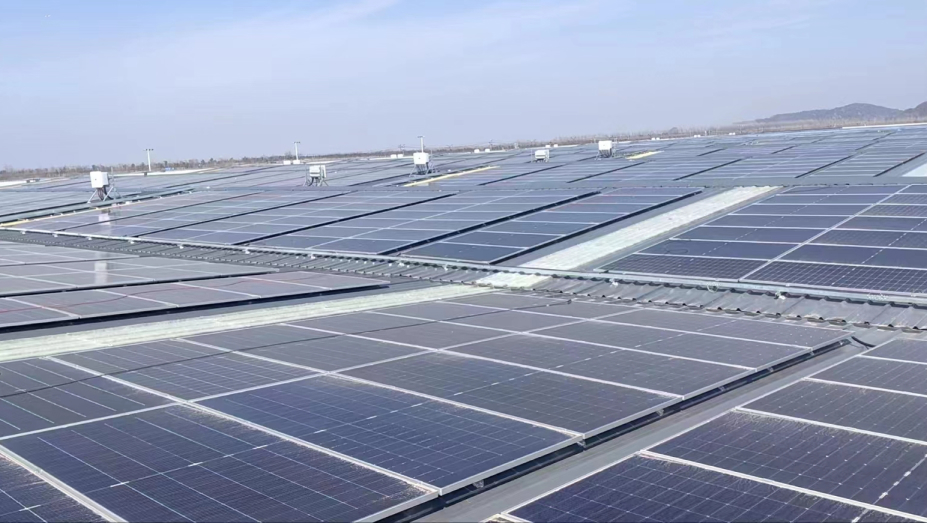

Adapt to the scene
.
