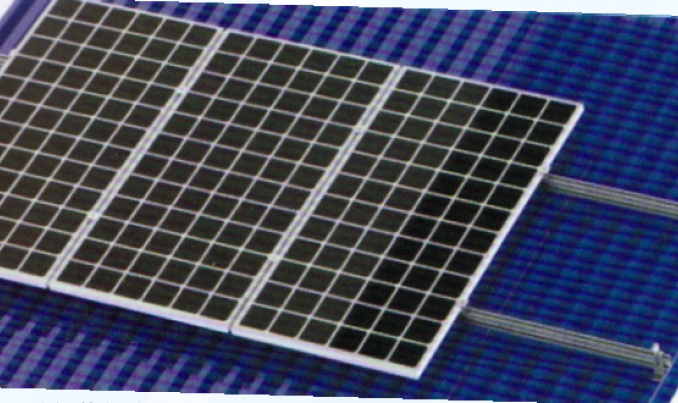

Color steel tile roof support system
Overview
Fix the L-angle base on the colored steel tile with self tapping screws (equipped with waterproof pad)
Fix the guide rail on the L-corner with M8 * 25 hexagonal bolts, flat washers, spring washers, and slider nuts
When the array is relatively long, the guide rails are fixed with guide rail links between them
Fix the components on the guide rail using edge pressure blocks and medium pressure blocks
Product Features
Advantage
Parameter

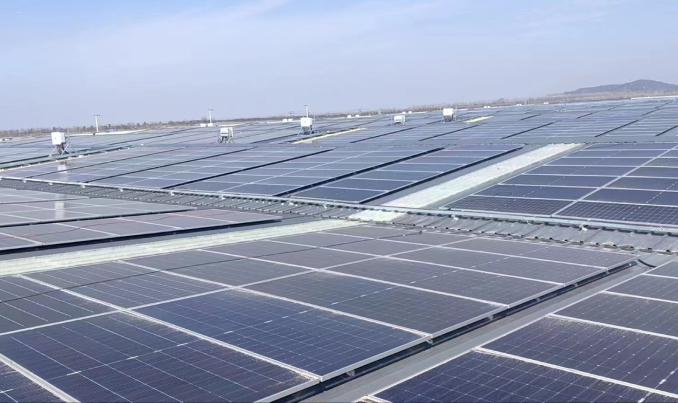

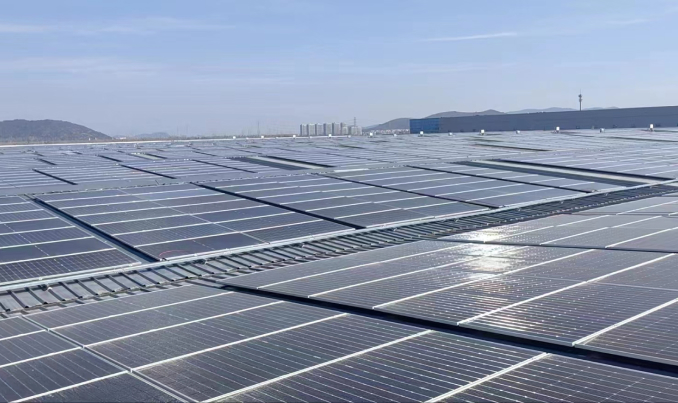

Adapt to the scene
Advantage
beautiful
Easy to install
- Installation is simple, convenient, and convenient
Diversified design
- We have a rich and diverse design that rejects monotony
Lightweight
Saving installation materials
- Saving installation materials
Parameter
Installation location
Color steel tile roof
Bevel bracket components
Based on actual needs
Wind bearing capacity
40m/s
Snow load bearing capacity
70kg/m2
