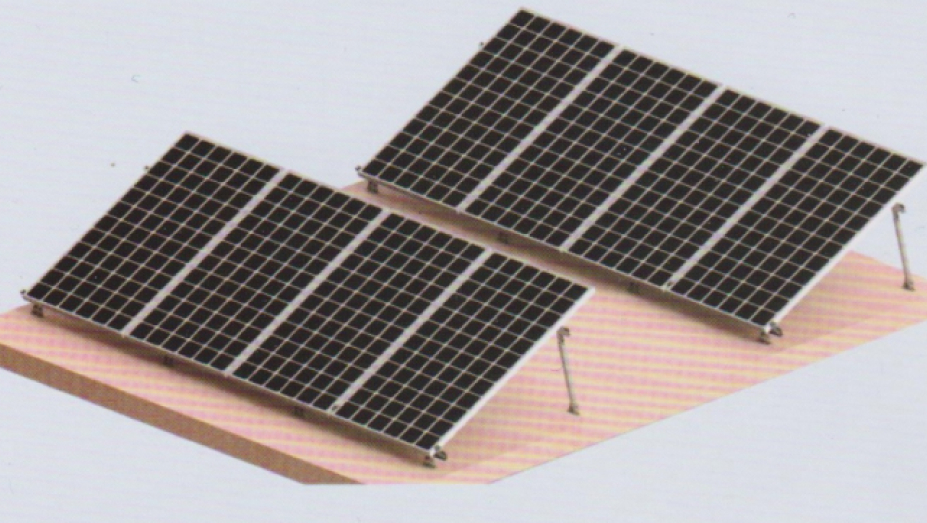

Cement floor adjustable angle bracket
Overview

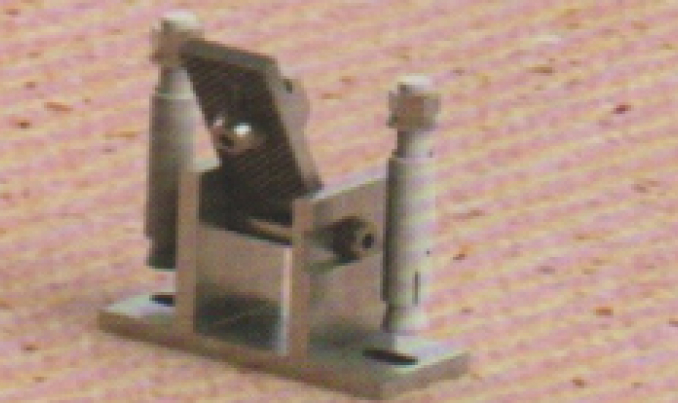

Fix the U-shaped base with teeth on the cement floor using expansion screws
Fix the guide rail onto the toothed part with M8 * 25 hexagonal bolts, spring washers, and slider nuts, paying attention to the installation direction

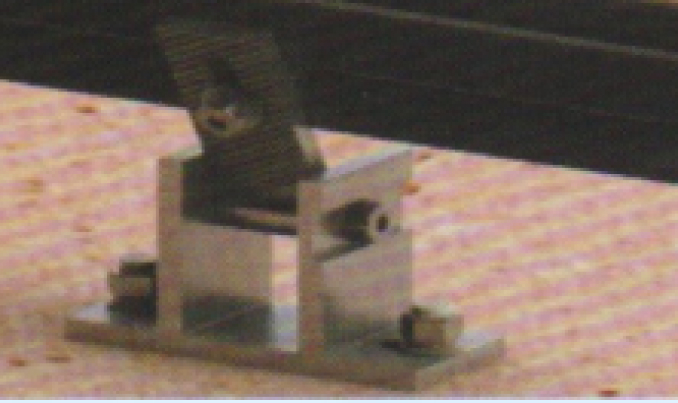

Fix the assembled U-shaped base and adjusting part on the cement storefront with expansion bolts
Fix the guide rail onto the toothed part with M8 * 25 hexagonal bolts, flat washers, spring washers, and slider nuts, paying attention to the installation direction

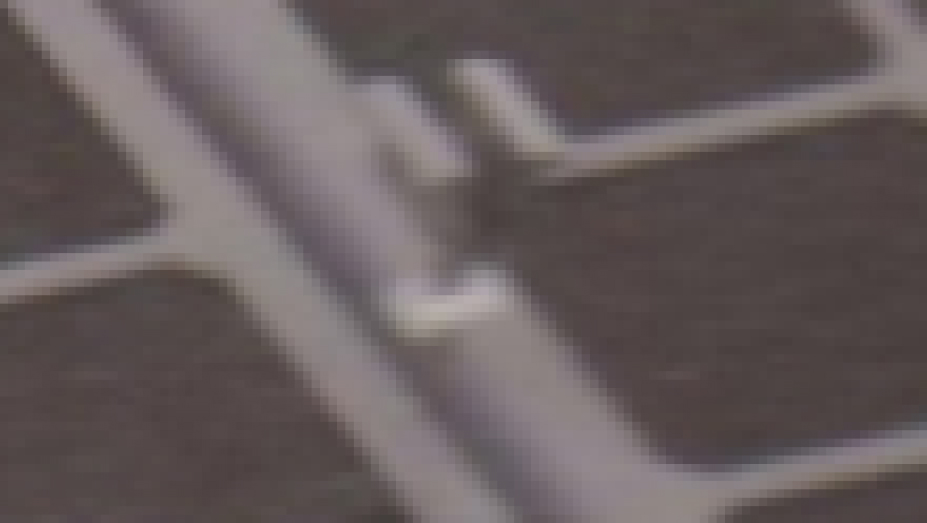

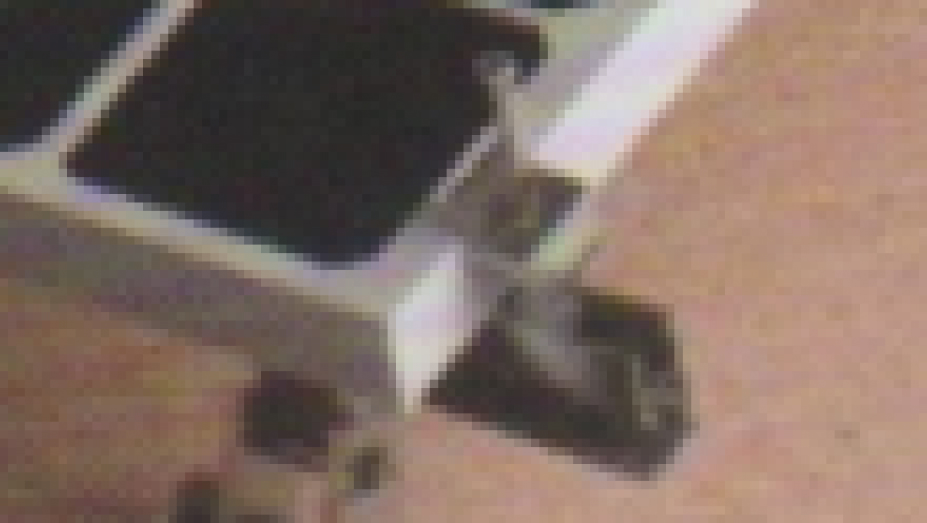

Fix the edge pressing block and medium pressure block for assembly on the guide rail
Product Features
Advantage
Parameter
Adapt to the scene
Advantage
Diversified applications
- Our products have a wide range of applications and diversity
Easy to install
- Easy to install, convenient, and fast
Universal compatibility
- We have compatibility and are versatile
Can install a large number of solar modules
- There are solar modules that can be installed in large quantities
Parameter
Installation location
Color steel tile roof
Bevel bracket components
Based on actual needs
Wind bearing capacity
40m/s
Snow load bearing capacity
70kg/m2
