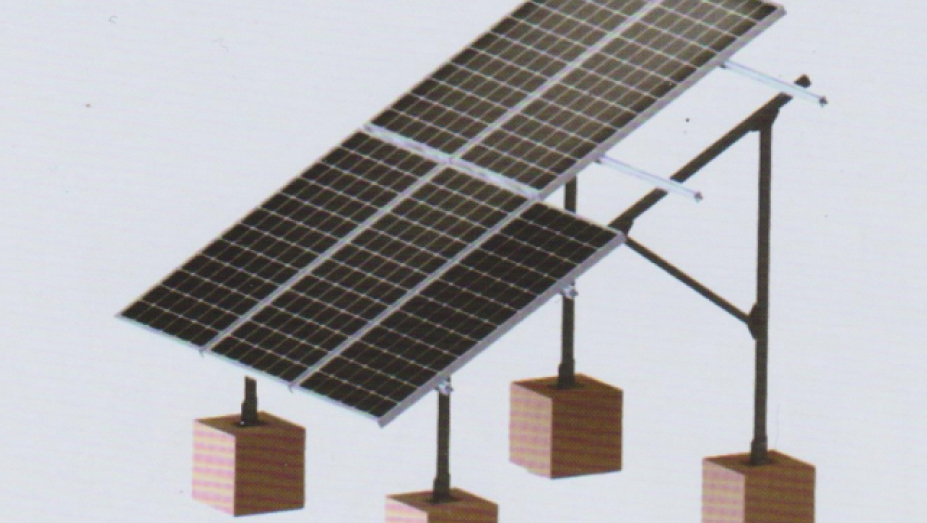

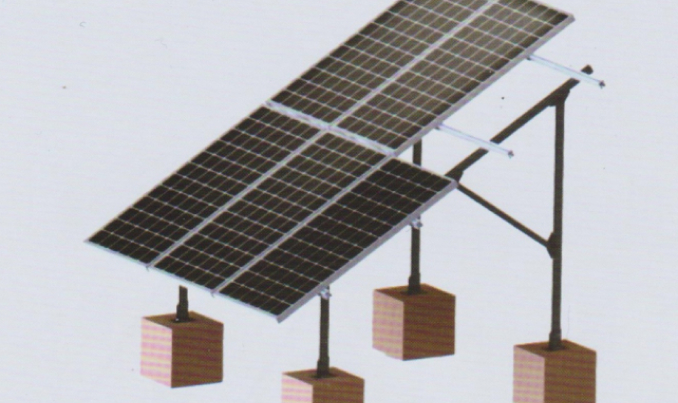

C-shaped steel ground support
Overview

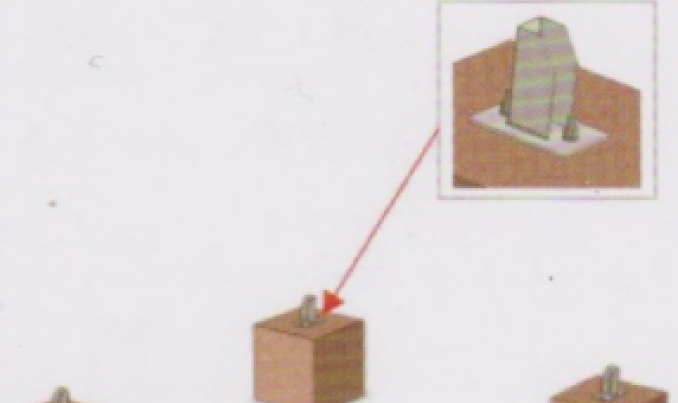

Fix the fixed support on the cement foundation (pre embedded bolts)

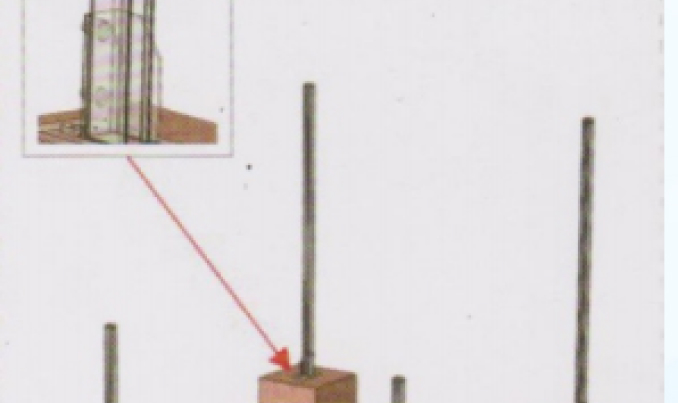

      Fix the front and rear pillars on the fixed support using M10 * 30 hexagonal bolts

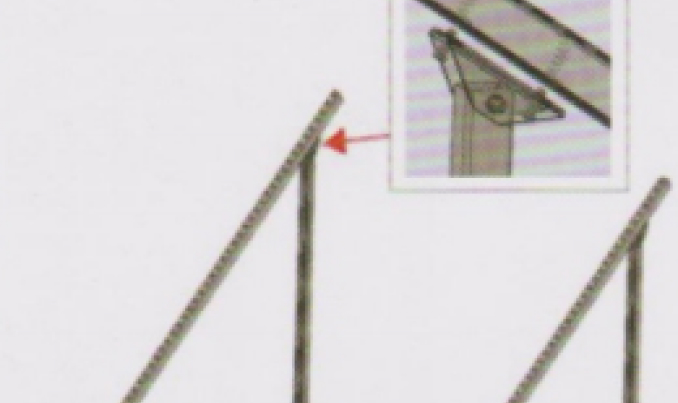

      Fix the movable support onto the column with M10 * 70 hexagonal socket bolts

      Fix the slant support on the diagonal beam and rear column with M10 * 30 hexagon socket bolts and spring nuts

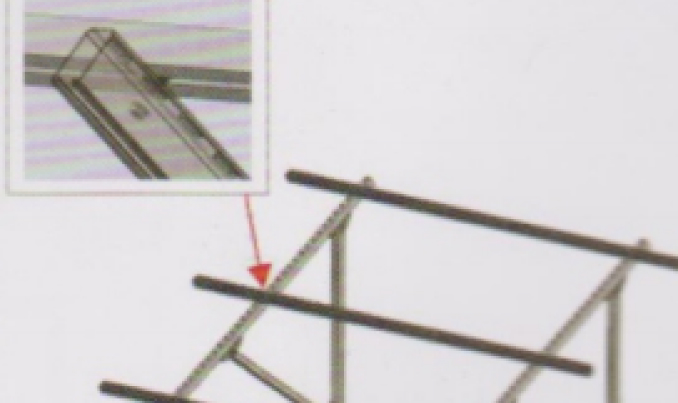

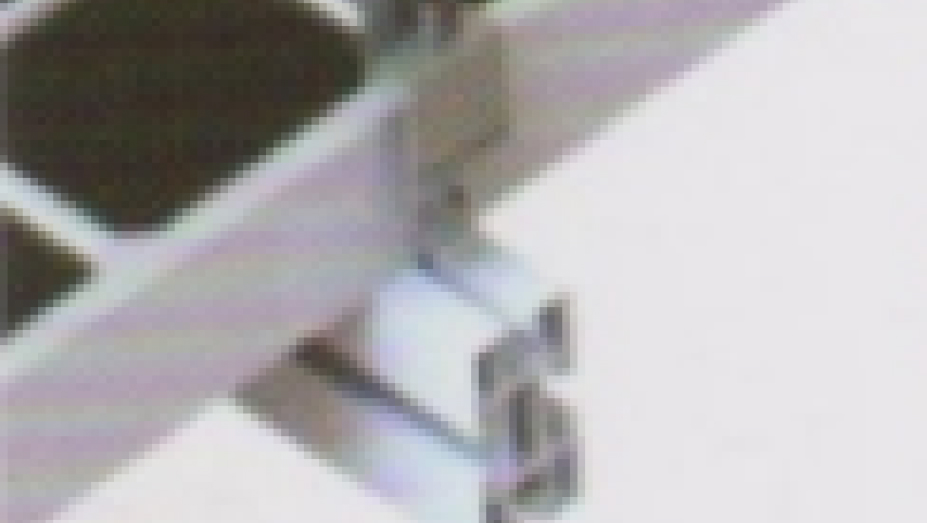

      Fix the guide rail on the inclined beam with M8 * 25 type bolts

Product Features
Rectangle
Rectangle
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
It does not damage vegetation
  • Green, safe and reliable, without damaging vegetation
Easy to install
  • Easy, convenient, and fast installation
High strength and wide installation range
  • Wide installation range and high strength characteristics
Parameter
Installation location
Color steel tile roof
Bevel bracket components
Based on actual needs
Pulling force
1000N
Wind bearing capacity
40m/s
Snow load bearing capacity
70kg/m2
Support type
Frame
Material
Aluminum
Color
Natural color
Service life
25 years
Adapt to the scene
.
