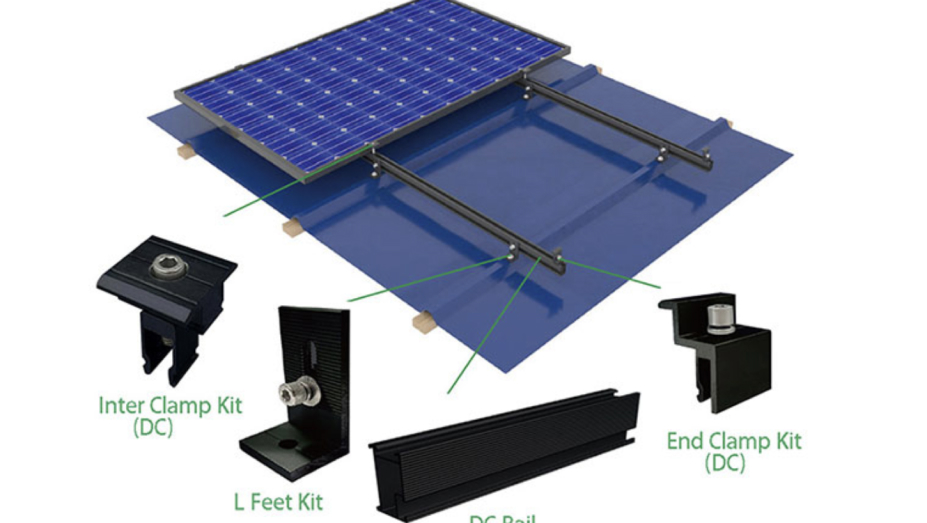

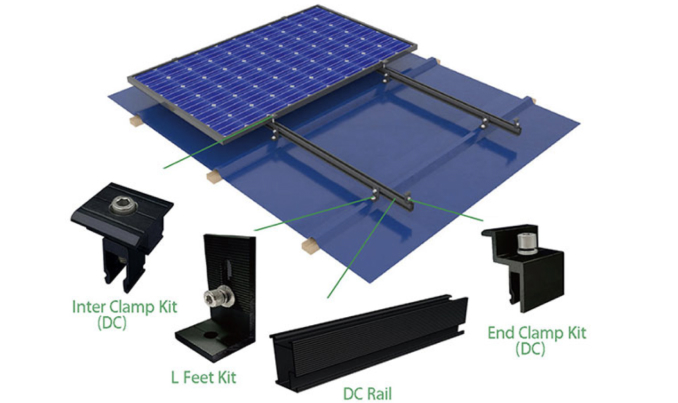

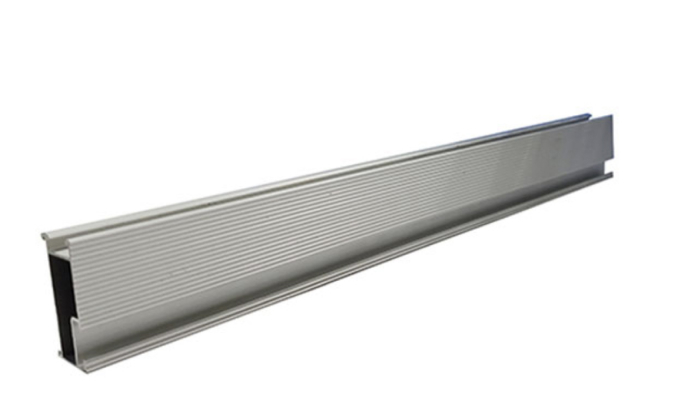

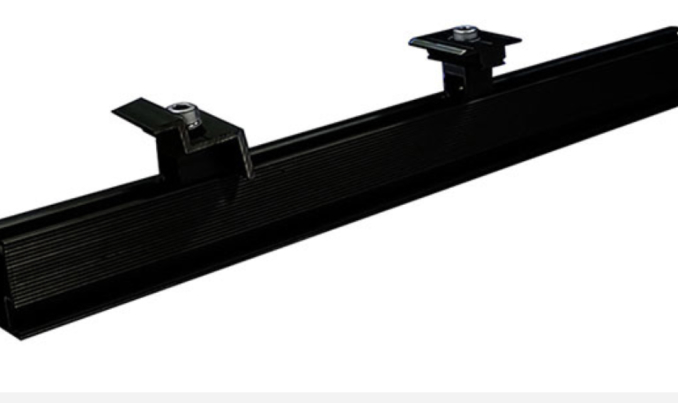

DC track H50
Overview

Suitable for different tile shapes of sloping roofs, the main structural material is aluminum alloy. Through professional design, the track and fixture are perfectly connected to meet your installation requirements. The design scheme tailored to local conditions and excellent structural strength calculation help you minimize the installation time and cost of the project. The unique design of patented accessories brings you more fast installation experience.

Product Features
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Suitable for different roofs
  • Design according to the specific situation of each customer and flexibly select different bracket components;
Fully compatible with different photovoltaic modules
  • Free and flexible support for various types of photovoltaic modules
Save construction costs and time
  • We will provide you with installation manuals and system solutions, so on-site construction is simple
Parameter
System Name
DC Track H50
Installation location
sloping roof
Installation foundation
Color steel tiles, magnetic tiles
Installation angle
0-15 °
Wind load
60m/s
Snow load
1.6KN/m2
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code IBC 2009, California Building Code CBC 2010;
Support material
Q235B (hot-dip galvanized), AI6005-T5 (surface anodized)
Fastener Material
SUS304&Zinc Nickel Alloy&Hot Dip Galvanized
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
Adapt to the scene
.
