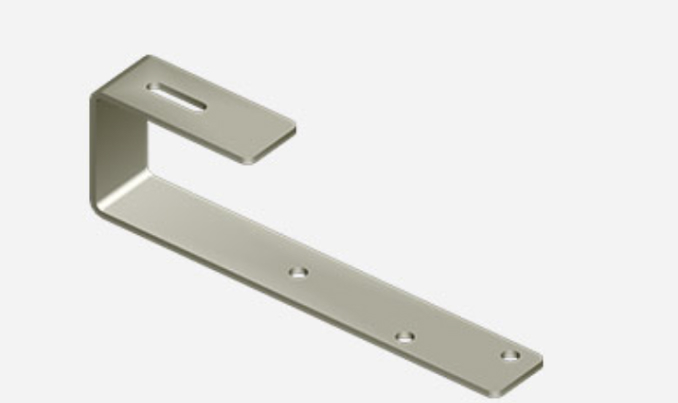

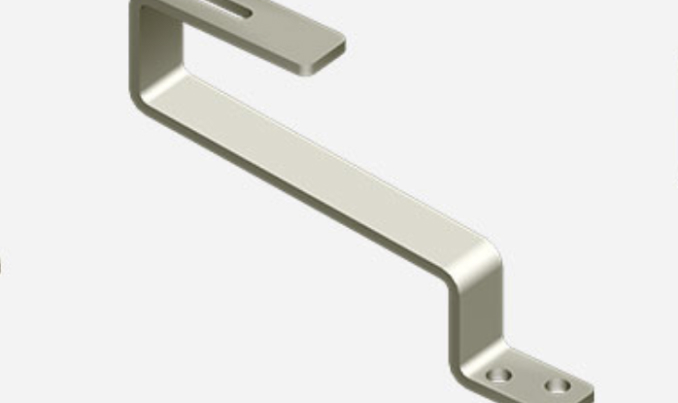

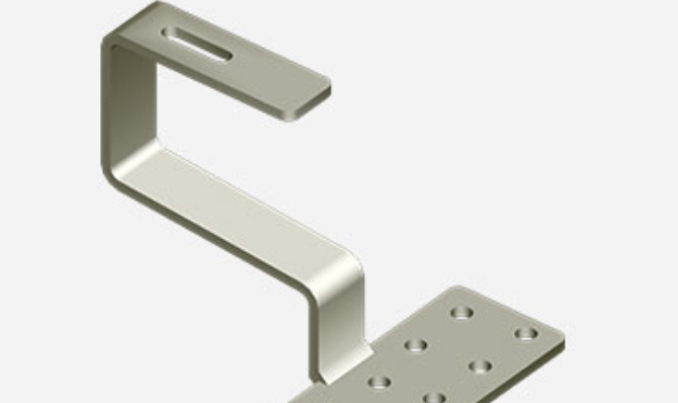

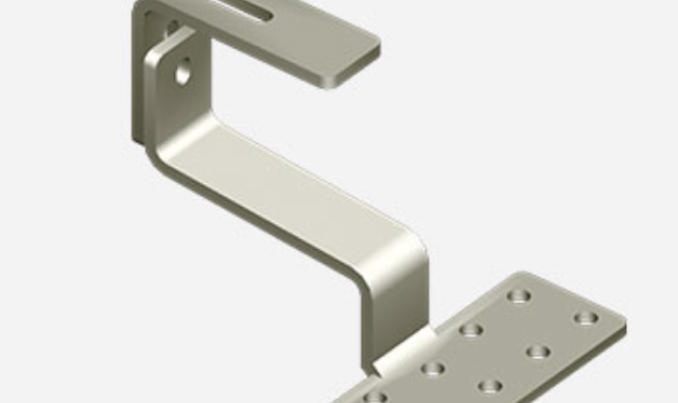

Porcelain tile hook
Overview

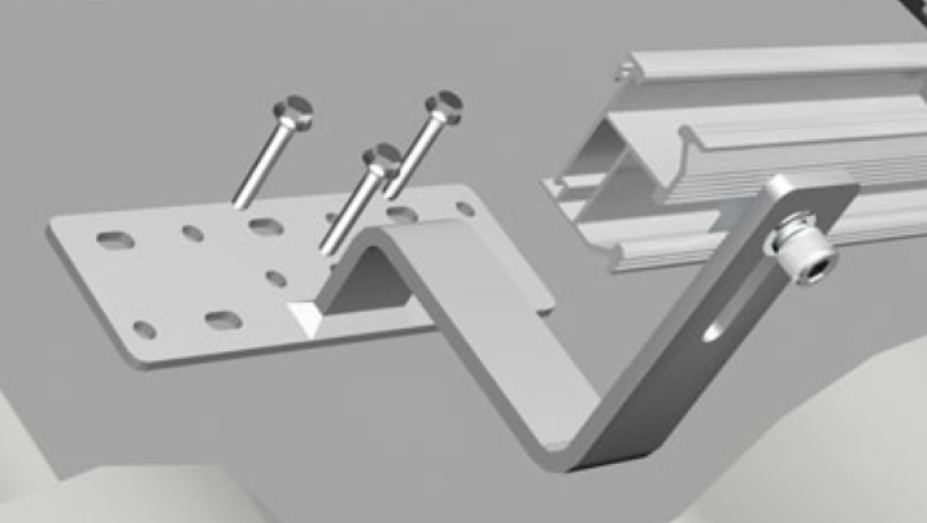

Mainly suitable for various ceramic or glazed tile roof photovoltaic brackets, the main structural material is aluminum alloy, and the professional design allows the hook components to achieve perfect connection with the ceramic tiles.

Product Features
Rectangle
Rectangle
Rectangle
Rectangle
组

Advantage

Parameter

Adapt to the scene

Advantage
Suitable for different porcelain tile roofs
Save construction costs and time
Fully compatible with different photovoltaic modules
Parameter
System Name
Porcelain Tile Hook
Installation location
sloping roof
Installation foundation
Porcelain tiles, flat tiles, slate tiles, asphalt tiles, etc
Installation angle
5-45 °
Wind load
60m/s
Snow load
1.6KN/m2
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code IBC 2009, California Building Code CBC 2010;
Support material
AI6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years

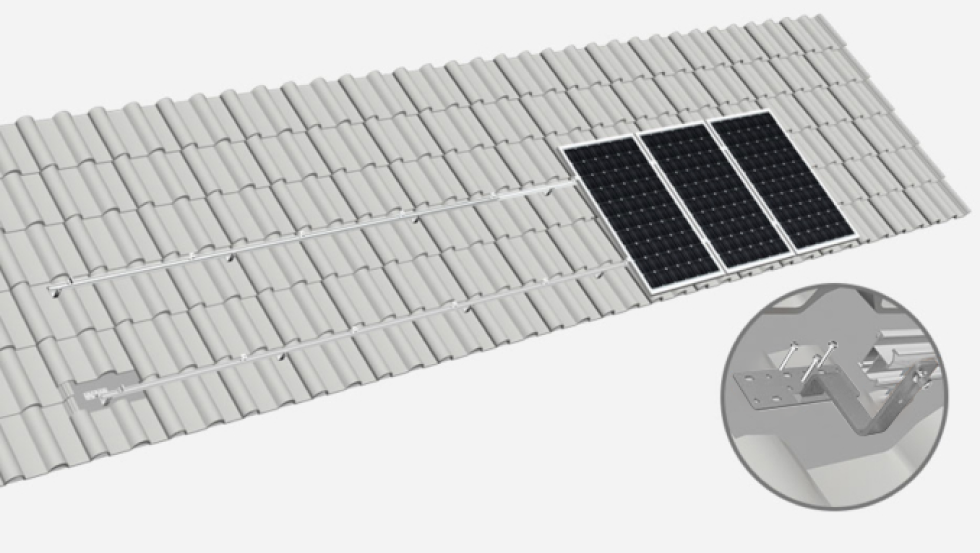

Adapt to the scene
.
