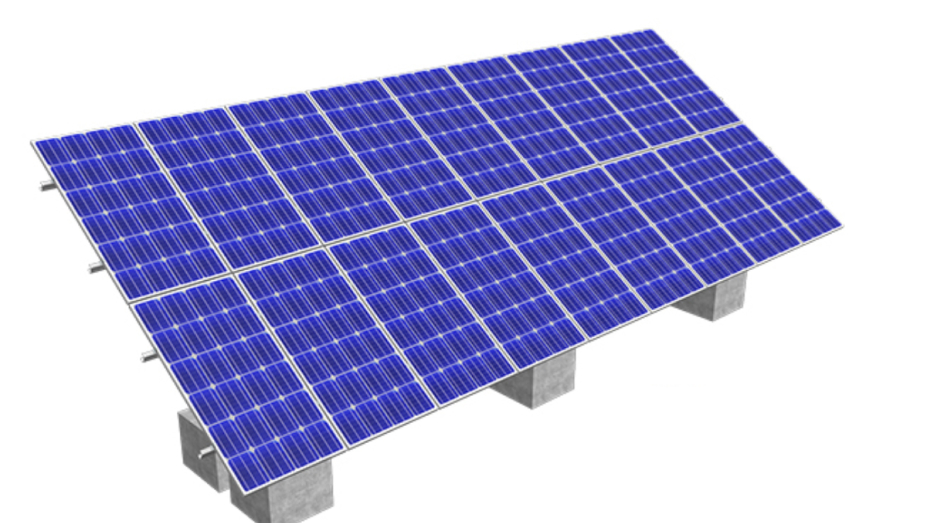

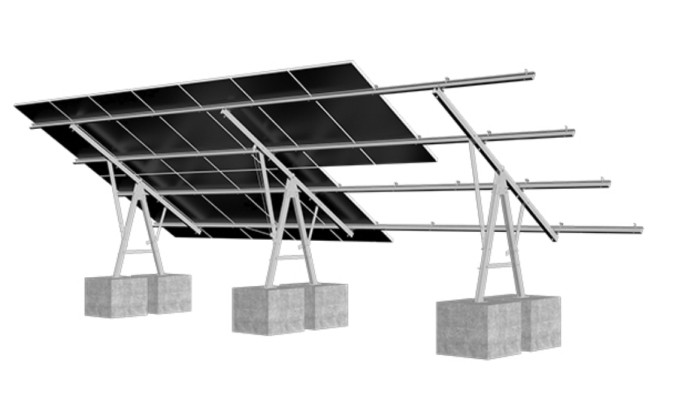

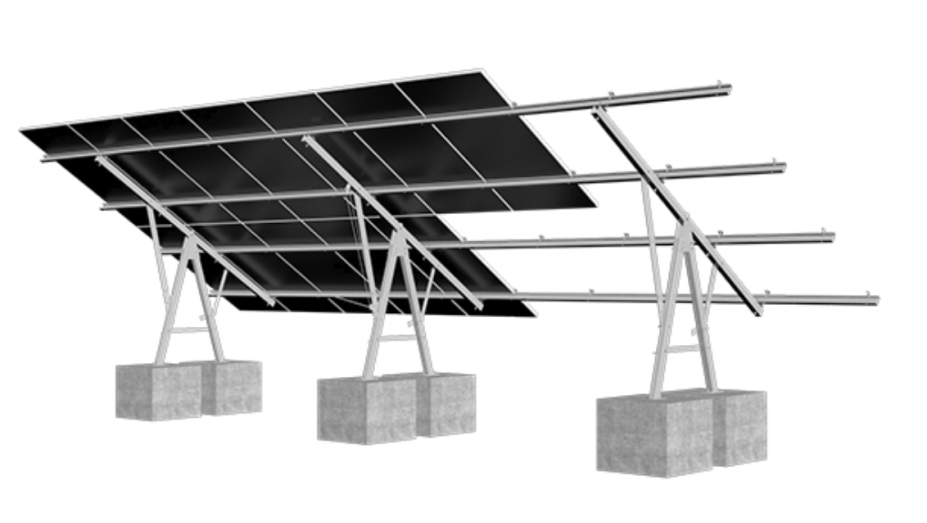

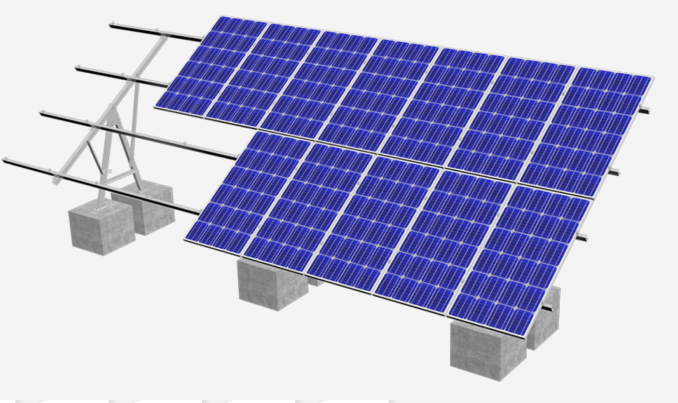

Manually adjustable floor bracket
Overview
The manually adjustable ground bracket is suitable for the installation of large commercial and public utility power plants. The product has a solid structure and strong stability, and the main accessories are made of carbon steel, which has good corrosion resistance. This product is designed flexibly and can manually adjust the angle of the battery panel, resulting in higher power generation efficiency and greater profits. The optimized design of the structure effectively improves the installation efficiency and greatly reduces the installation cost of the project.
Product Features
Advantage
Parameter
Adapt to the scene
Advantage
Strong adaptability to the environment, high power generation efficiency
- Suitable for different ground environments.
Professional structural design
- To ensure the overall stability and strength of the system, prefabrication is completed in the factory, and installation can be completed on-site by simply fixing and splicing fasteners.
Adjustable angle design
- The entire system can manually adjust the required angle, resulting in higher power generation efficiency and greater profits.
Fully compatible with different photovoltaic modules
- Can freely and flexibly support various types of photovoltaic modules.
Parameter
Installation location
Ground level
Installation foundation
Cement foundation
Installation angle
10-40 °
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code: IBC 2009, California Building Code: CBC 2010;
Support material
Q235B (hot-dip galvanized)

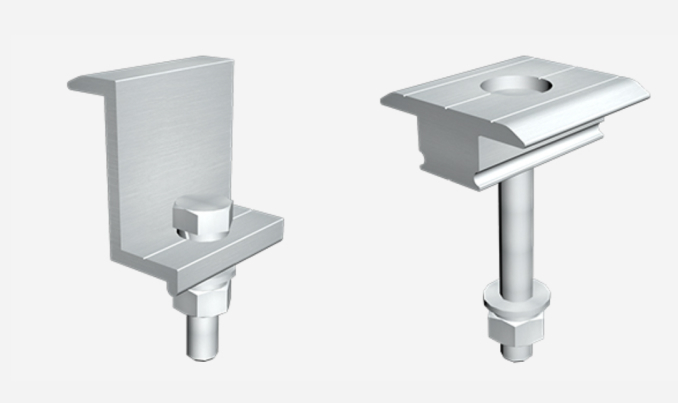

Fastener material
Zinc nickel alloy&stainless steel SUS304

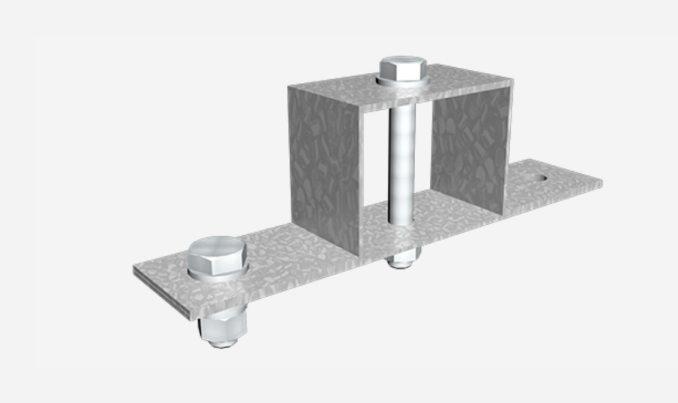

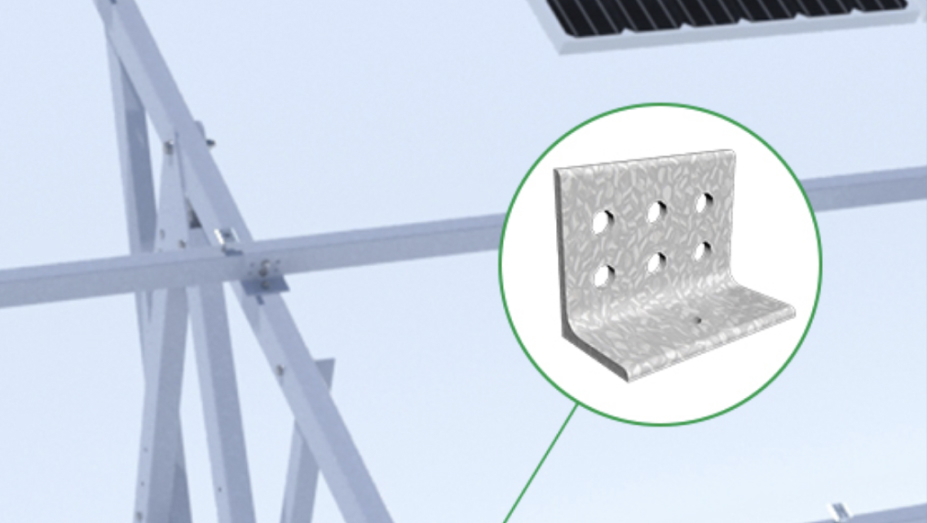

Material of spare parts
Q235B (hot-dip galvanized)
Support color
Natural silver or colored according to customer requirements
