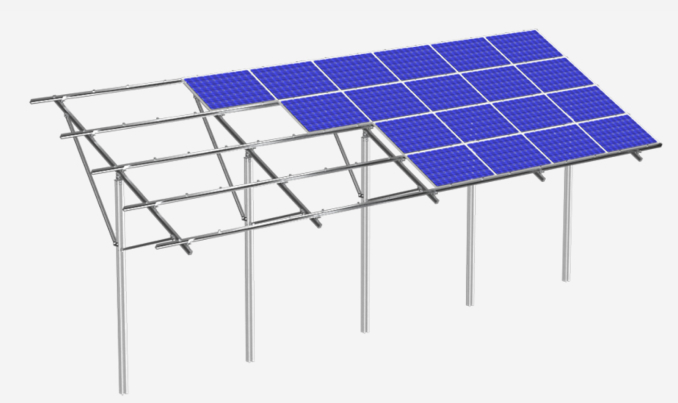

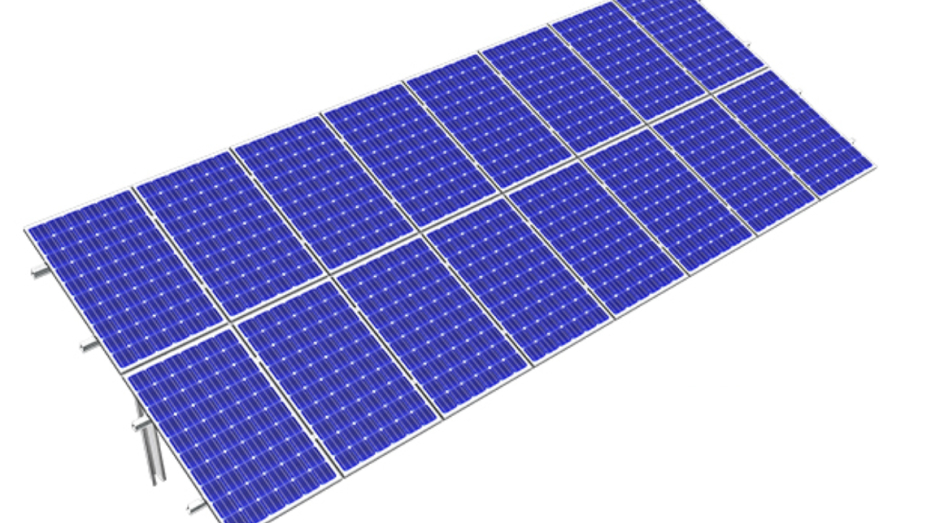

Ground photovoltaic support system - PGT2
Overview
The ground photovoltaic support PGT2 is a highly pre installed ground photovoltaic support product, mainly suitable for large commercial and public utility power station locations. The main configuration of the product is made of aluminum alloy material, which has good corrosion resistance. The patented structural design effectively reduces on-site installation time, saves labor costs, and has good component compatibility.
Product Features
Advantage
Parameter
Adapt to the scene
Advantage

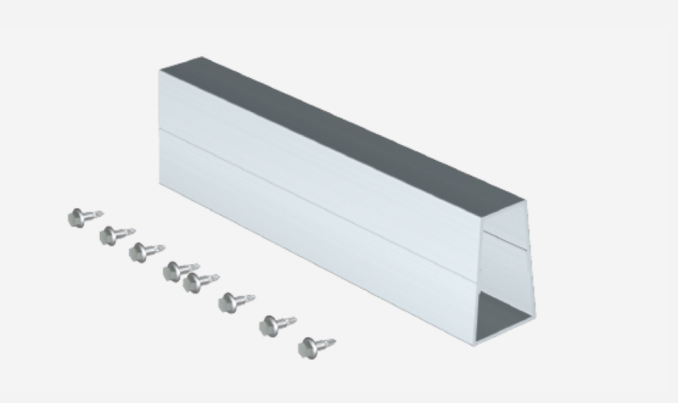

Highly pre installed to save installation time
- The installation of spare parts is minimal, and the on-site height is pre installed, without the need for any on-site cutting or drilling, greatly reducing your on-site installation time.

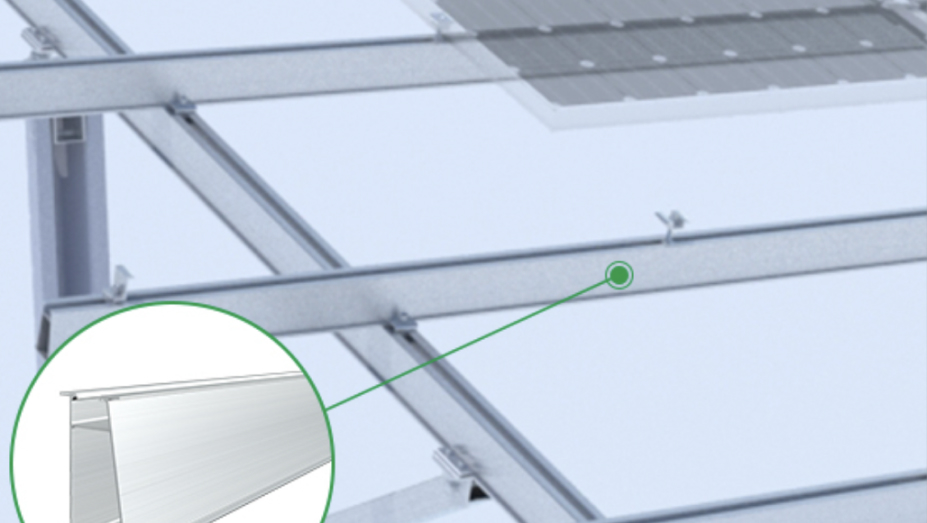

Symmetrical orbit design
- The use of symmetric orbits ensures the quality of the system while reducing overall costs, giving the PGT2 system a more cost-effective advantage.

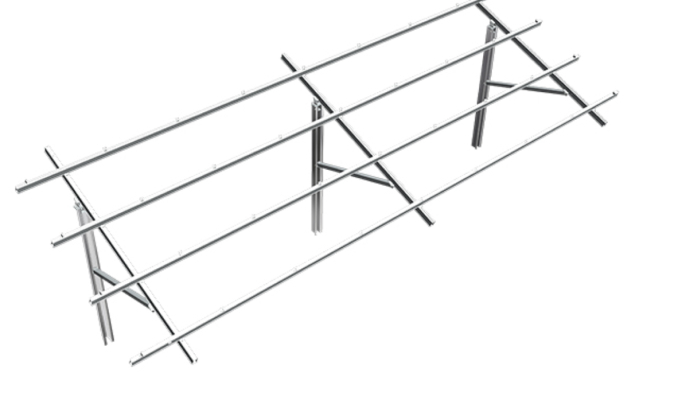

Unique column design
- The unique zigzag steel column can adapt to various soil engineering installations and ensure that the entire system is more stable under stress.

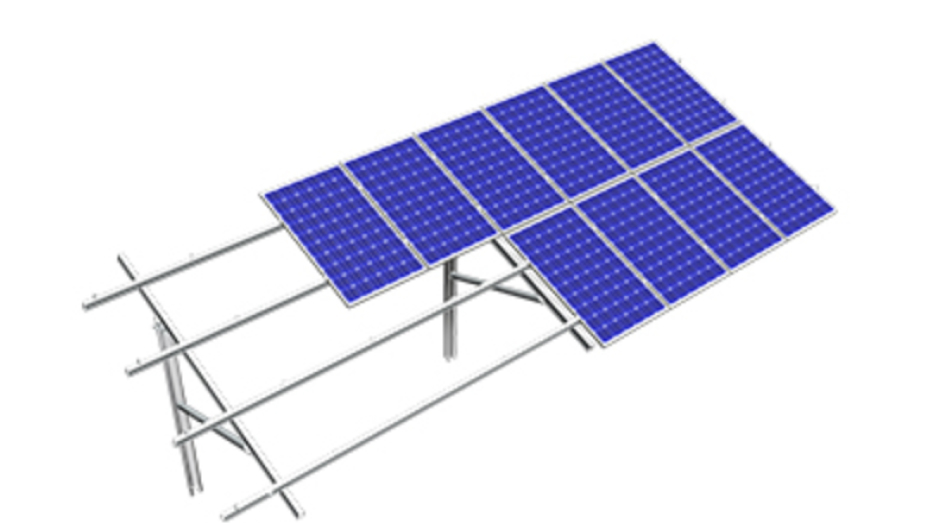

Optional support method
- Single arm and double arm diagonal supports can be selected according to the actual situation of the project, with high cost-effectiveness.
Parameter
Installation location
Ground level
Installation foundation
Cross shaped steel
Installation angle
0-60 °
Ground clearance
500-2000mm
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code: IBC 2009, California Building Code: CBC 2010;
Support Material
Q235B (Hot Dip Galvanized)&AL6005-T5 (Surface Anodized)

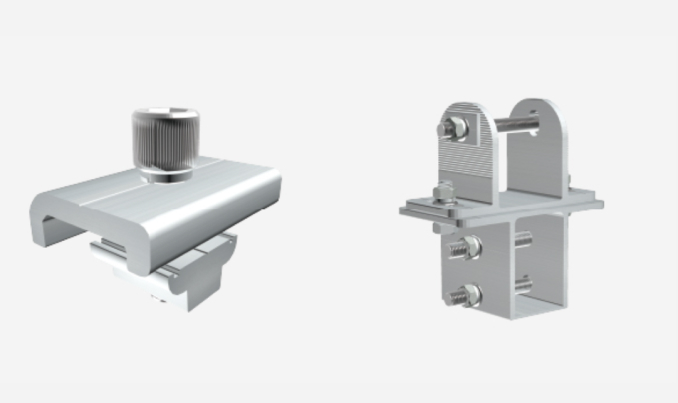

Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AL6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
