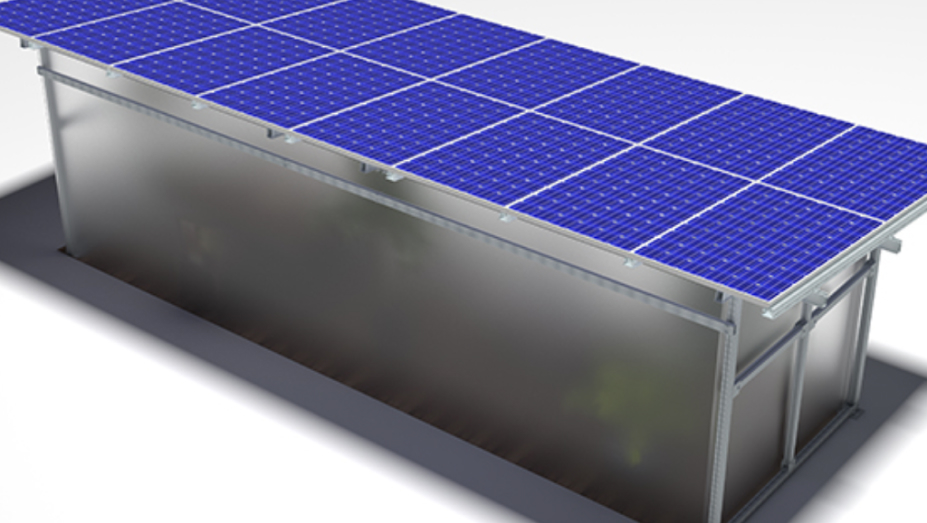

Sunshine room photovoltaic support system
Overview

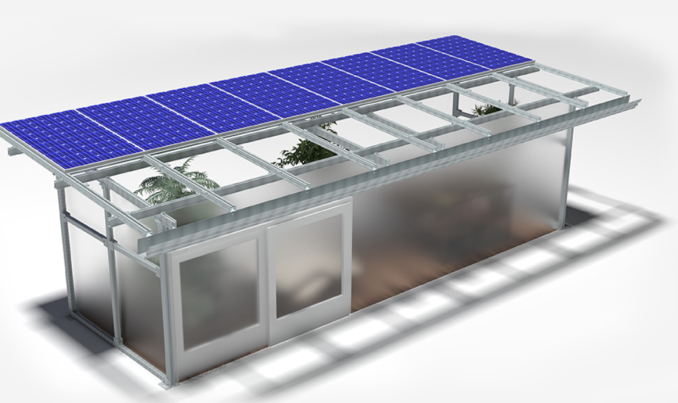

The Sunshine Room Photovoltaic Waterproof Support System is a design that incorporates artistic exaggeration and uses scientific interpretation to break through, revealing a fashionable atmosphere. By using a photovoltaic power generation system installed on the roof of the Sunshine Room, it not only provides good transparency, but also converts solar energy into electricity, allowing for spontaneous self use and surplus electricity to be connected to the internet. It experiences a technological and environmentally friendly life that both sunshades and generates electricity, achieving intimate contact between the room and sunlight, Photovoltaic solar houses have become a lifestyle fashion for modern people to pursue and approach nature!
Product Features
Advantage
Parameter
Adapt to the scene
Advantage

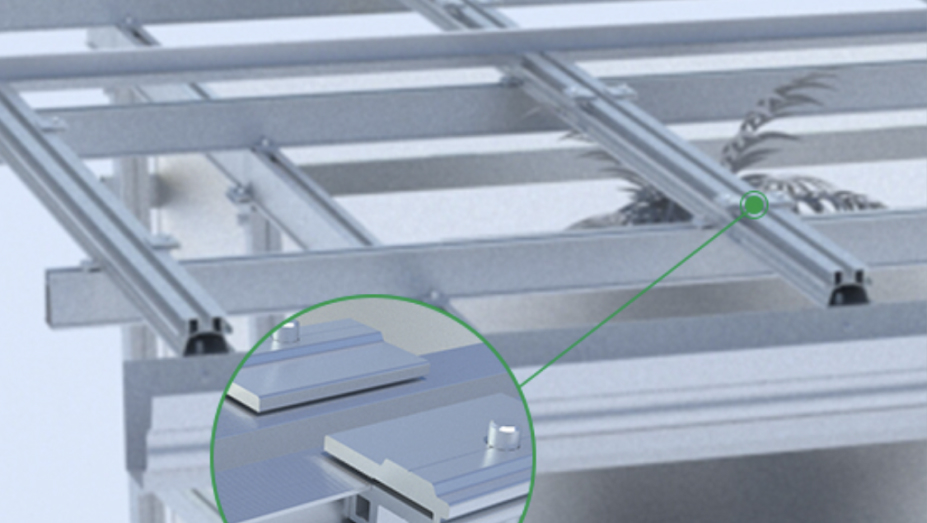

The card block and slot adopt a symmetrical design
- No directional requirements during installation, improving installation efficiency.
Highly pre installed to save installation time
- Less installation of spare parts, highly pre installed in the factory, without the need for any on-site cutting or drilling, reducing the difficulty and time of on-site construction, greatly reducing project costs.

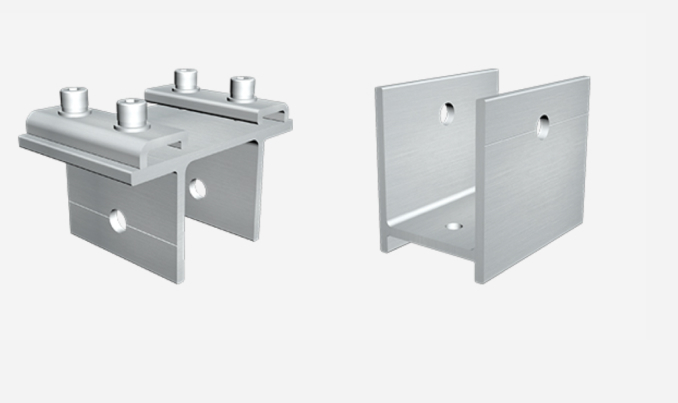

Convenient component installation method

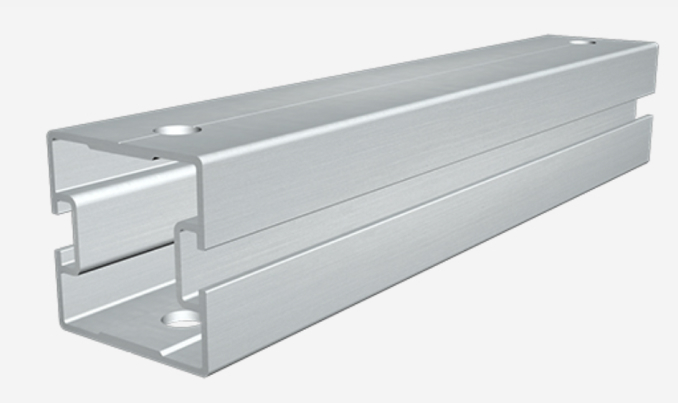

- Optional accessory installation method, with T-shaped groove design for column square pipes, making installation more convenient.
Waterproof design
- Unique waterproof structure design solves the problem of water leakage.
Parameter
Installation location
Open area
Installation foundation
Cement foundation
Installation angle
5-15 °
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code: IBC 2009, California Building Code: CBC 2010;
Support material
AL6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AL6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
