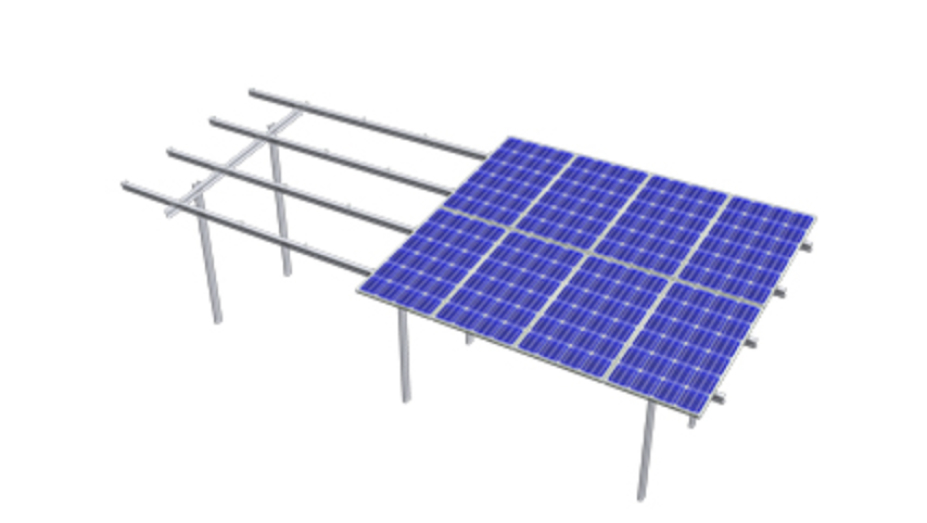

Ground photovoltaic support system GT7
Overview
The GT7 photovoltaic support system is suitable for the installation of large commercial and public utility power plants. The product has a solid structure and strong stability, and its main accessories are made of carbon steel, which has good corrosion resistance. The unique column design and professional structural design not only ensure system strength, but also effectively reduce engineering installation time and labor costs, reduce installation costs, and have good component compatibility.
Product Features
Advantage
Parameter
Adapt to the scene
Advantage
Unique column design

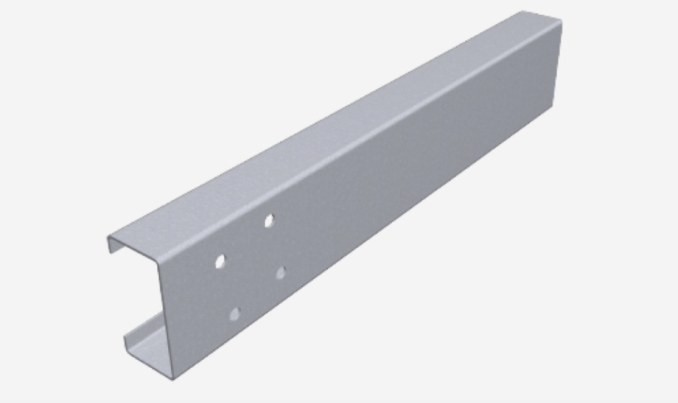

- The unique C-shaped column can adapt to various soil engineering installations and make the entire system more stable.

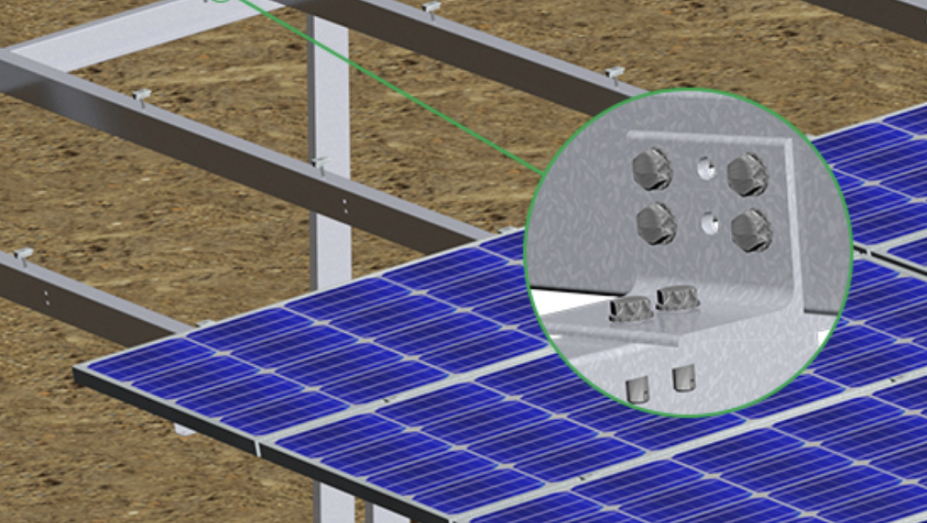

Flexible on-site adjustment
- Industry leading design based on terrain adjustment can achieve vertical, east-west, southwest, and north-south adjustments, simplify installation, and maximize photovoltaic power generation.
Fully compatible with different photovoltaic modules

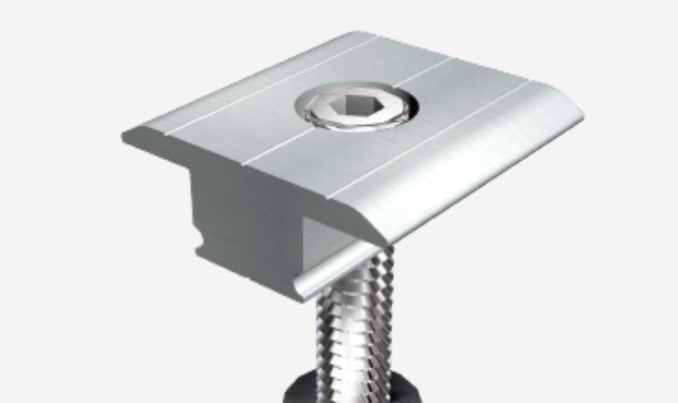

- The independently developed and designed pressure block is compatible with various standard types of photovoltaic modules on the market.
Parameter
Installation location
Ground level
Installation foundation
C-shaped column
Installation angle
0-60 °
Ground clearance
500-2000mm
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code: IBC 2009, California Building Code: CBC 2010;
Support material
Q235B (hot-dip galvanized)
Fastener Material
SUS304&Hot Dip Galvanized
Material of spare parts
AL6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
