Ground photovoltaic support system - TCGT4
Overview

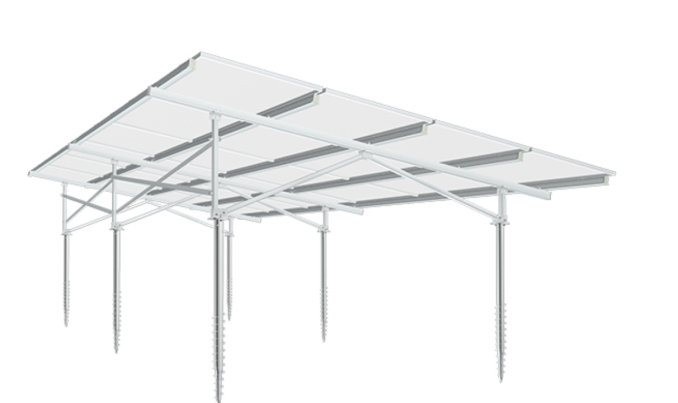

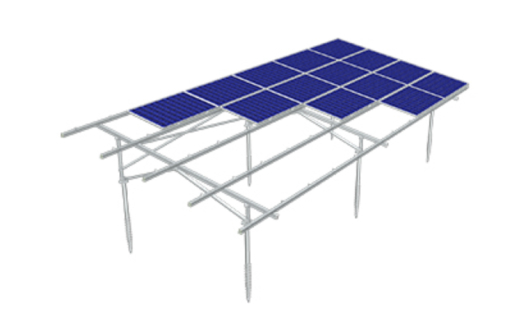

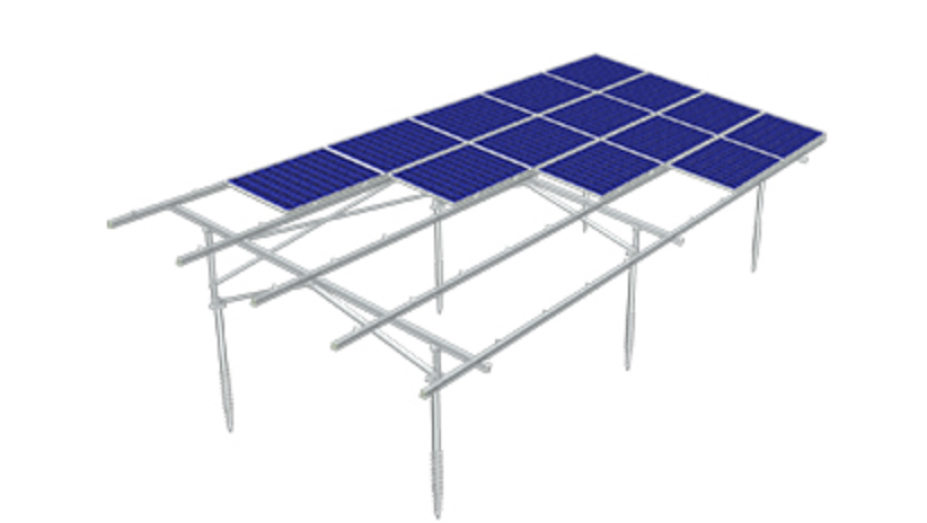

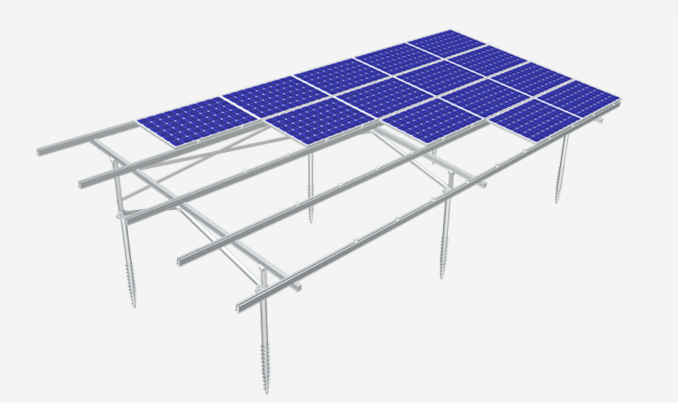

The ground photovoltaic support system TCGT4 is suitable for installation areas with higher requirements for wind and snow resistance, and has high pre installation characteristics. The support system can be adjusted in the front, back, left, right, and up and down directions, suitable for the installation of medium and large photovoltaic power plants. Professional structural design effectively improves the efficiency of engineering installation while ensuring system strength, greatly reducing installation costs.
Product Features
Advantage
Parameter
Adapt to the scene
Advantage

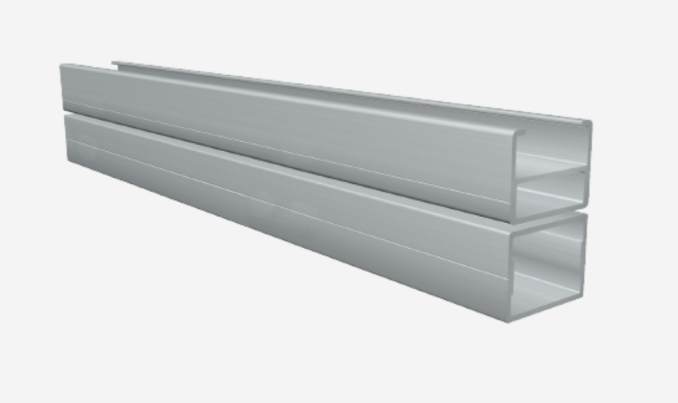

The card block and slot adopt a symmetrical design
- No directional requirements during installation, improving installation efficiency.

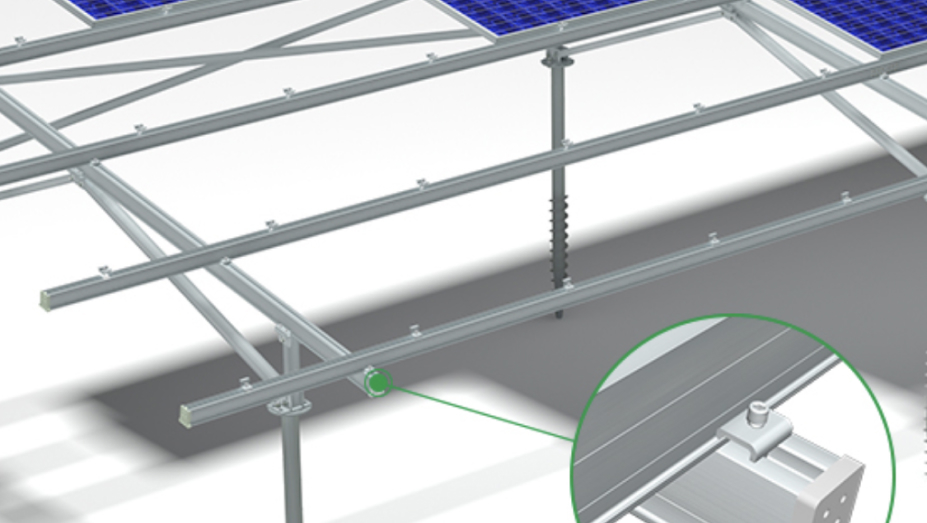

The fixing of the longitudinal beam does not require drilling
- Using a dedicated compression block fixed on the joint, the compression direction is consistent with the overall stress direction, greatly improving strength.
Highly pre installed to save installation time
- Less installation of spare parts, highly pre installed in the factory, without the need for any on-site cutting or drilling, reducing the difficulty and time of on-site construction, greatly reducing project costs.
Flexible on-site adjustment
- Industry leading professional design, designed according to terrain adjustment, can achieve vertical, east-west, southwest, north-south adjustment, simplify installation, and maximize photovoltaic power generation.
Parameter
Installation location
Ground level
Installation foundation

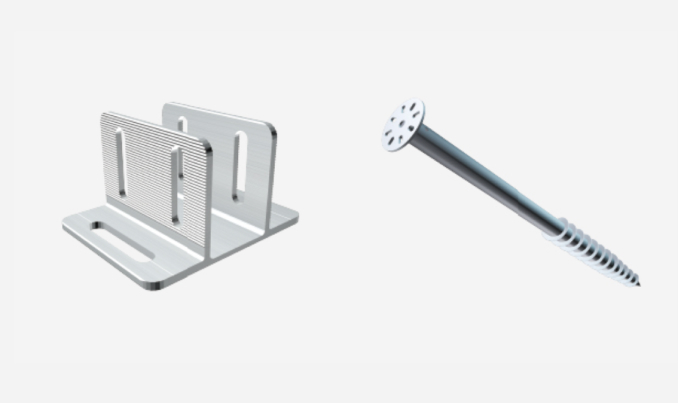

Cement foundation, spiral ground pile
Installation angle
0-60 °
Ground clearance
500-2000mm
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code: IBC 2009, California Building Code: CBC 2010;
Support material
AL6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AL6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
