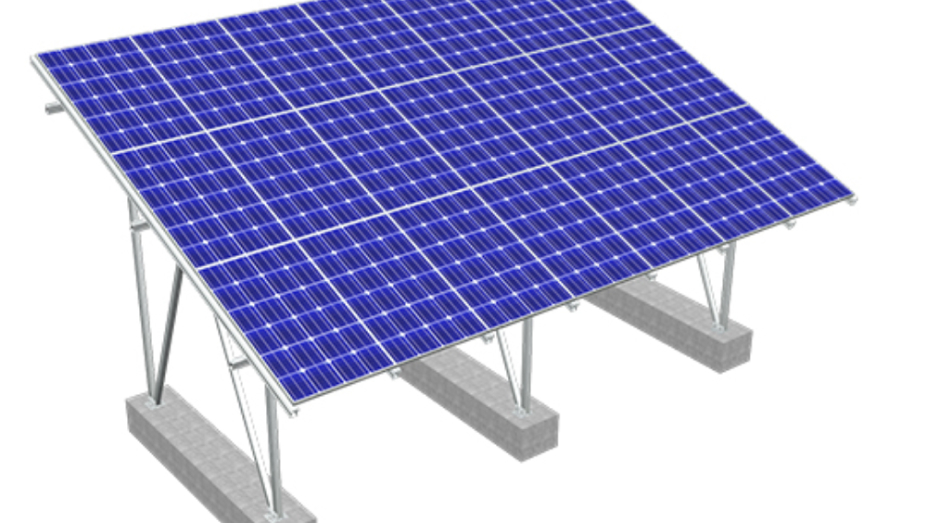

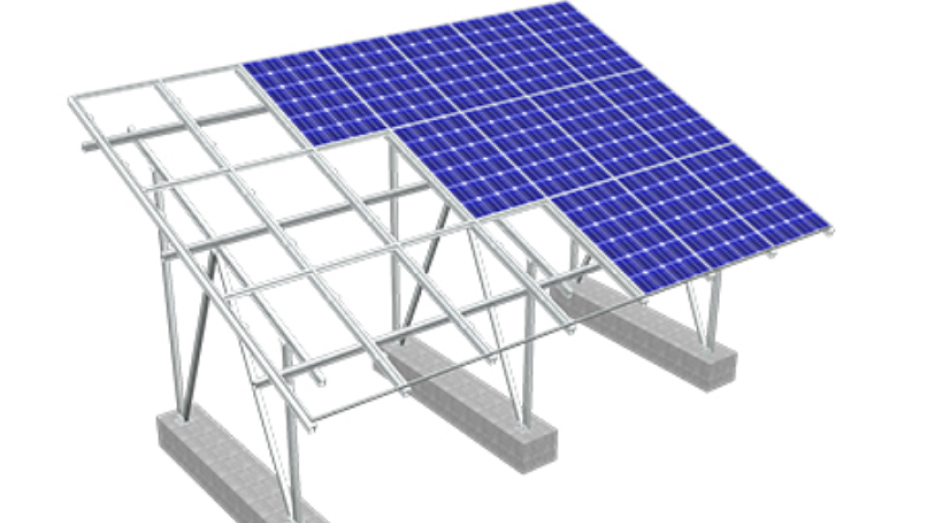

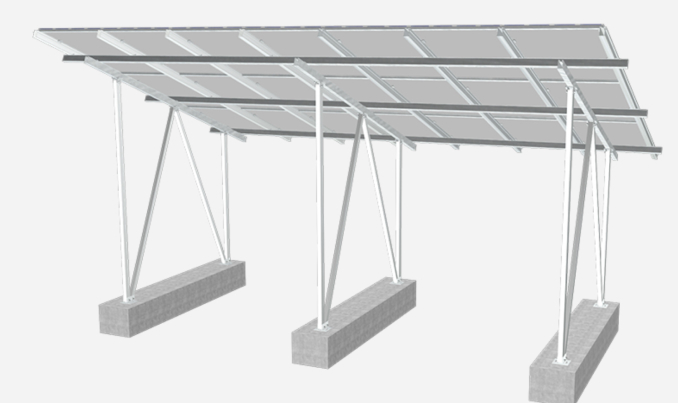

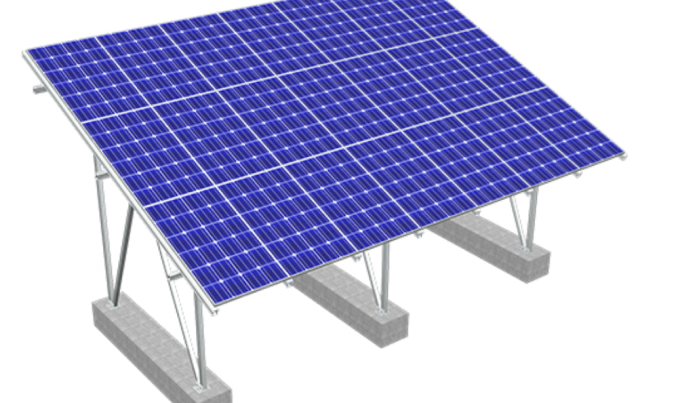

Ground photovoltaic waterproof support system
Overview
The ground photovoltaic waterproof support system is suitable for the installation of small and medium-sized ground photovoltaic power plants. This product has high pre installation characteristics, strong wind and snow resistance, and can adjust the entire system in the front, back, left, right, and up and down directions, greatly reducing the requirements for installation accuracy.
Product Features
Advantage
Parameter
Adapt to the scene
Advantage
The card block and slot adopt a symmetrical design
Highly pre installed to save installation time
Convenient component installation method
Waterproof design
Parameter
Installation location
Ground level
Installation foundation
Cement foundation, spiral ground pile
Installation angle
0-15 °
Ground clearance
500-2000mm
Applicable component types
boxed
Component layout method | | Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C 8955:2017, International Building Code IBC 2009, California Building Code CBC 2010
Support material
AI6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
