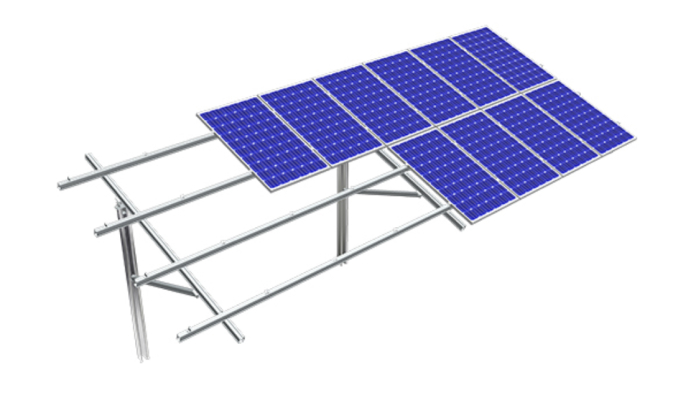

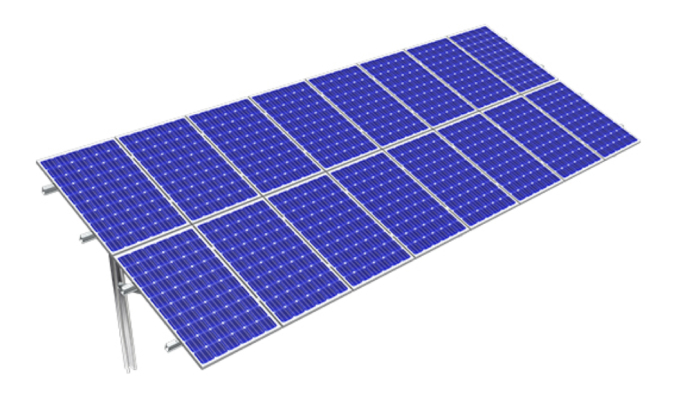

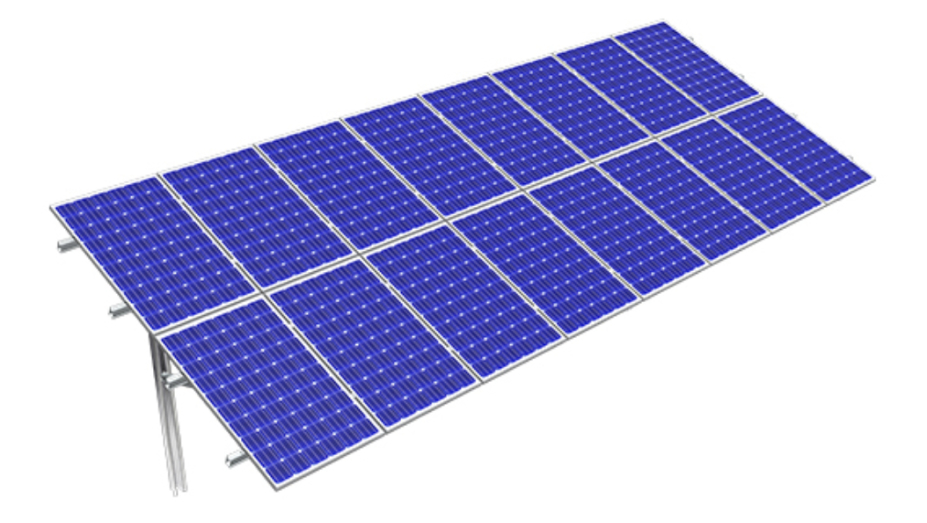

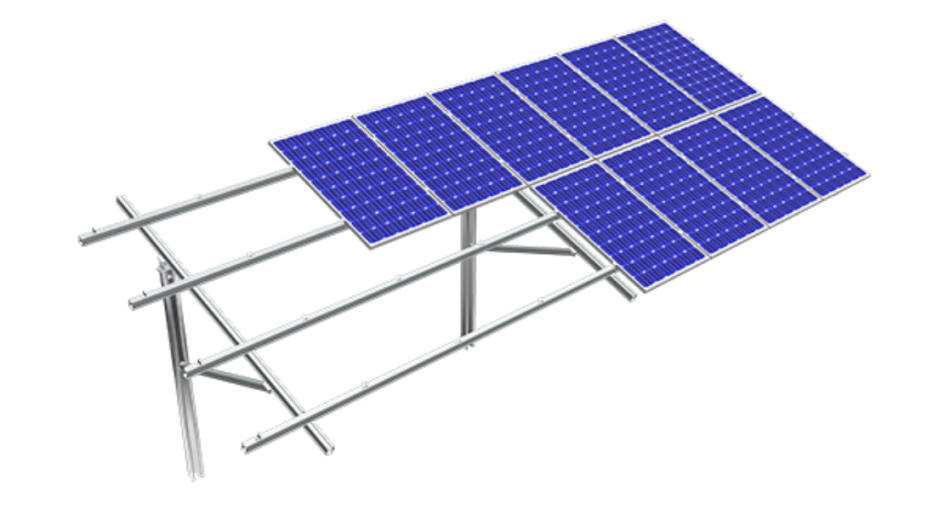

Ground photovoltaic support system GT2
Overview

It is a highly pre installed ground photovoltaic support product, suitable for large commercial and public utility power station locations, etc. The main configuration of the product is made of aluminum alloy material.

Product Features
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Rapid station construction with low construction costs
Single column design scheme
Structural Multi Style
Flexible on-site adjustment
Parameter
Installation location
Ground level
Installation foundation
Cross shaped steel
Installation angle
0-60 °
Wind load
60m/s
Snow load
1.6KN/m2
Ground clearance
500-2000mm
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C 8955:2017, International Building Code IBC 2009,
California Building Code CBC 2010
Support material
Q235B (hot-dip galvanized), AI6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
Adapt to the scene
.
