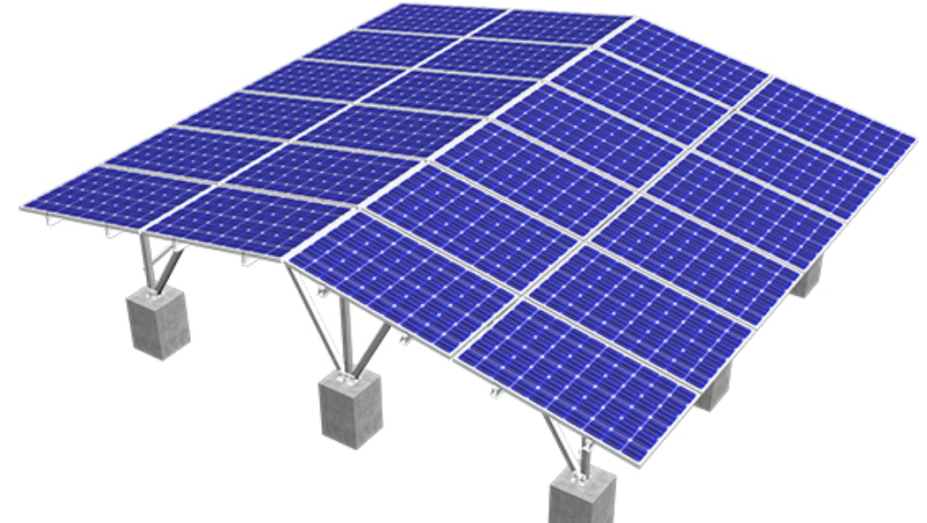

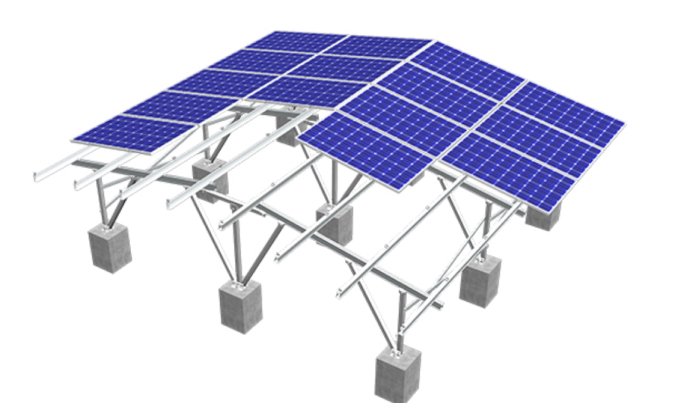

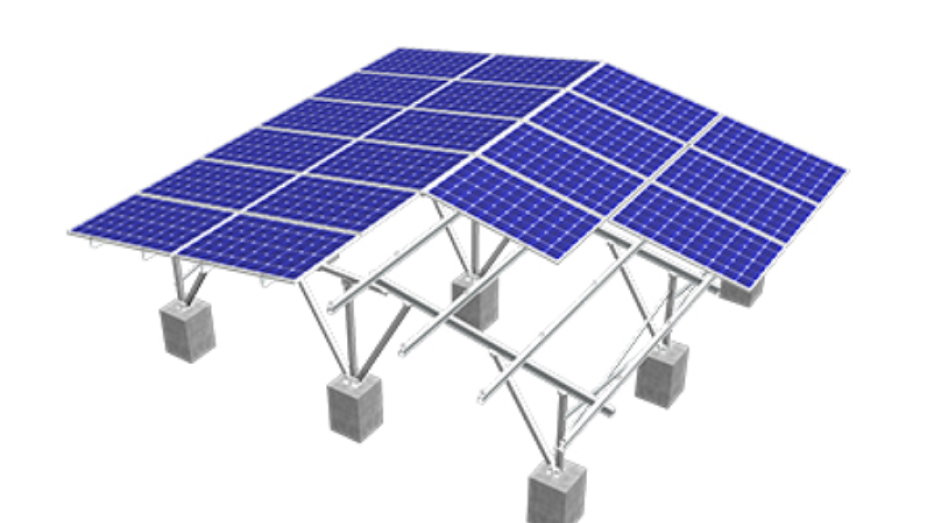

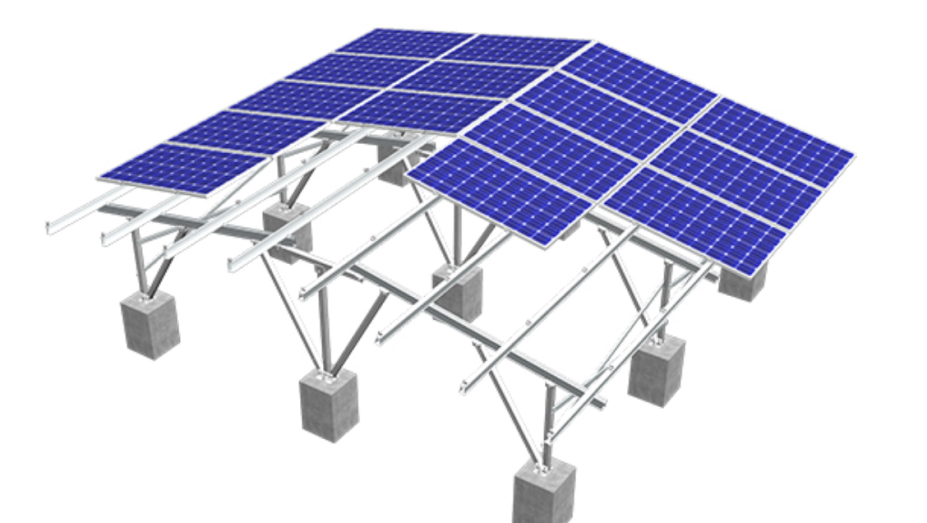

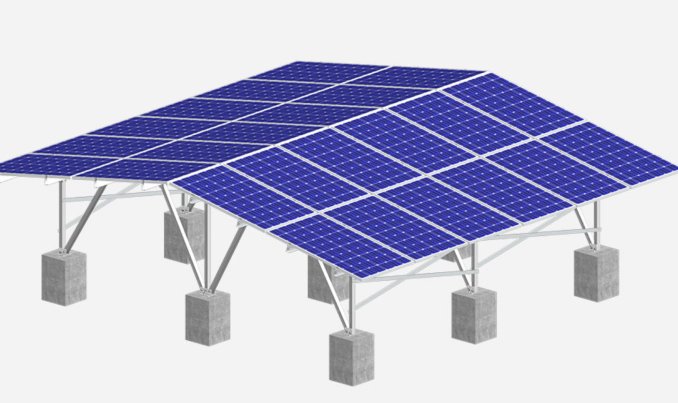

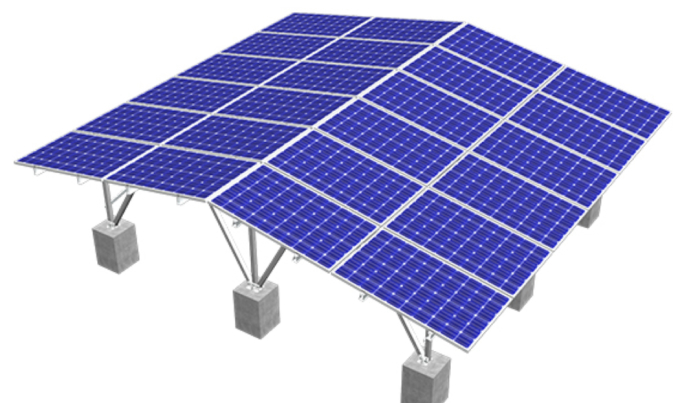

Ground photovoltaic support system - SPGT4
Overview

This product has high pre installation characteristics and is suitable for the installation of medium to large photovoltaic power plants. The industry-leading symmetrical structure design enhances the overall stability of the system.

Product Features
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
The card block and slot adopt a symmetrical design
Highly pre installed to save installation time
Flexible on-site adjustment
The fixing of the longitudinal beam does not require drilling
Parameter
Installation location
Ground level
Installation foundation
Cement foundation, spiral ground pile
Installation angle
0-30 °
Wind load
60m/s
Snow load
1.6KN/m2
Ground clearance
500-2000mm
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code IBC 2009, California Building Code CBC 2010;
Support material
AI6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
