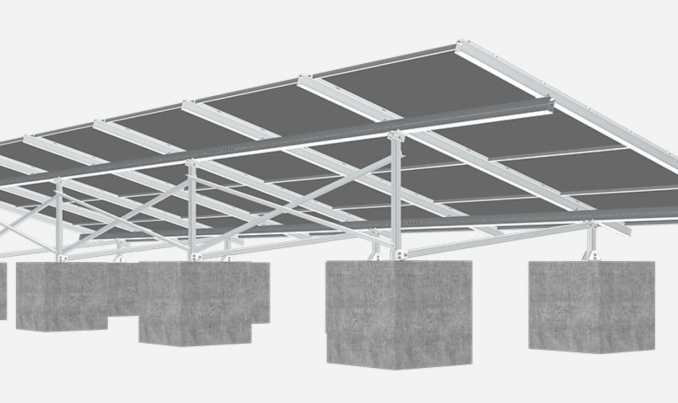

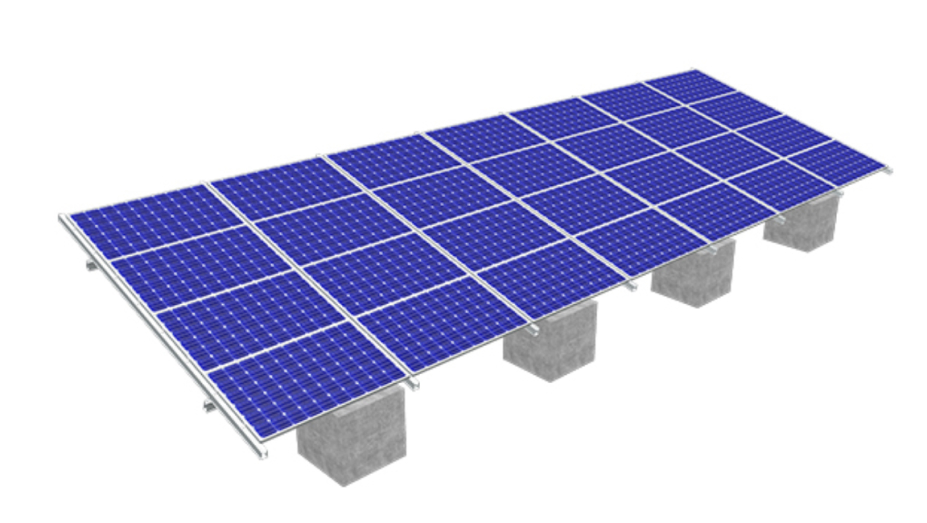

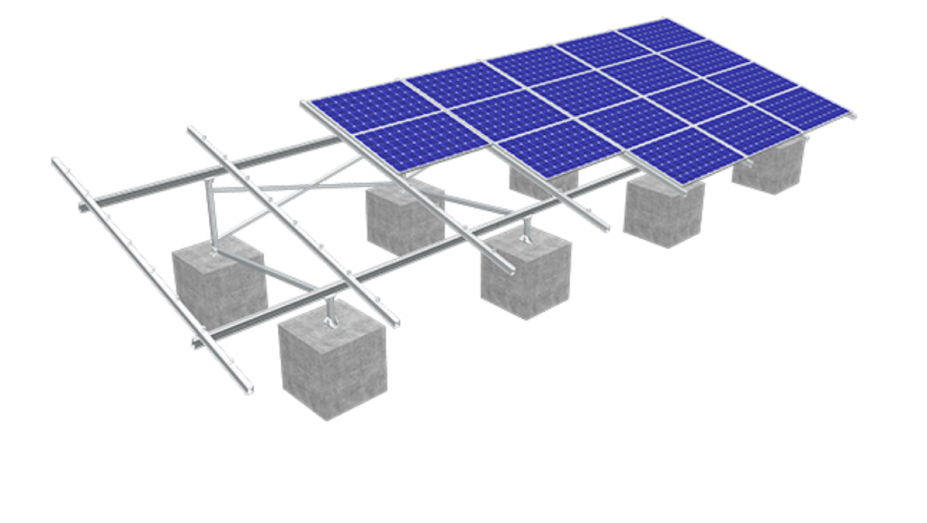

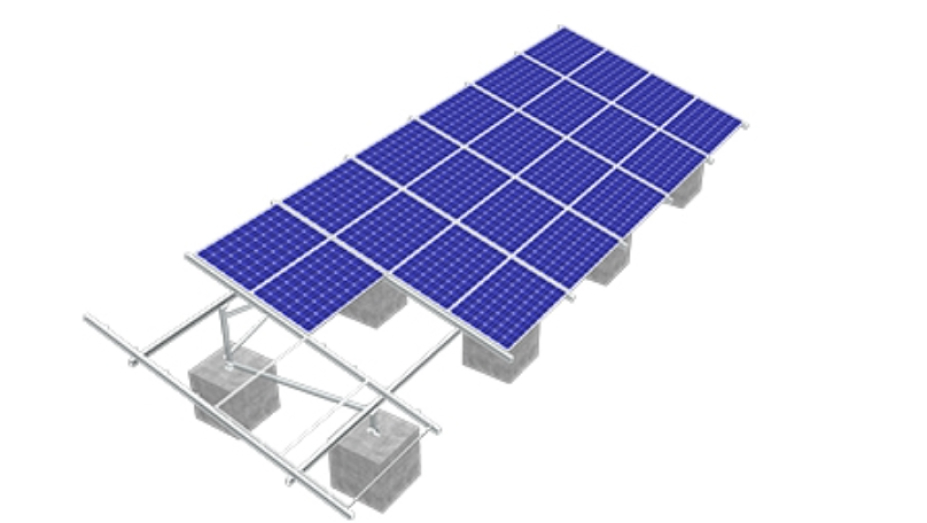

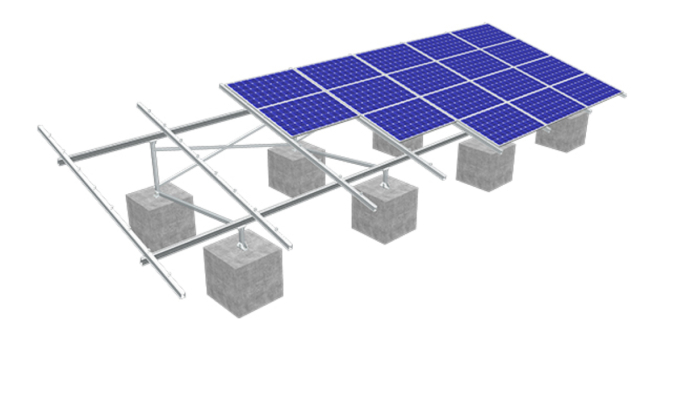

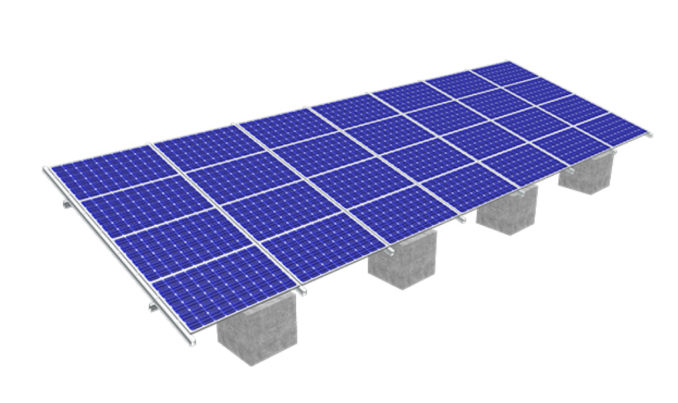

Ground photovoltaic support system GT6
Overview

Suitable for medium and large ground photovoltaic power plants with higher requirements for wind and snow resistance, optimized structural design reduces the system longitudinal beams to the optimal state.

Product Features
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Highly pre installed to save installation time
The fixation of the track does not require drilling
Design with no longitudinal beam scheme
Flexible pairing
Parameter
Installation location
Ground level
Installation foundation
Cement foundation, spiral ground pile
Installation angle
0-60 °
Wind load
60m/s
Snow load
1.6KN/m2
Ground clearance
500-2000mm
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C 8955:2017, International Building Code IBC 2009, California Building Code CBC 2010
Support material
AI6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
Adapt to the scene
.
