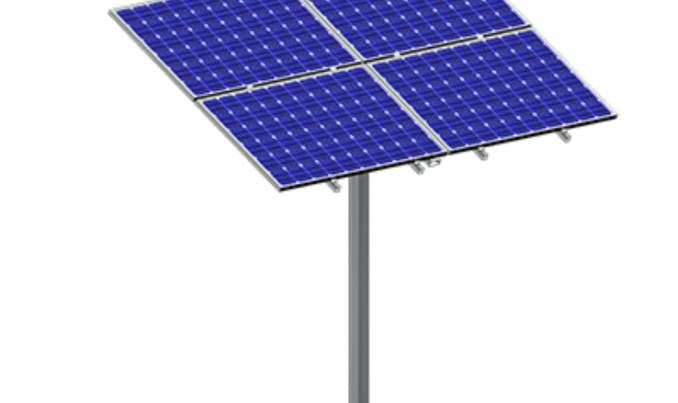

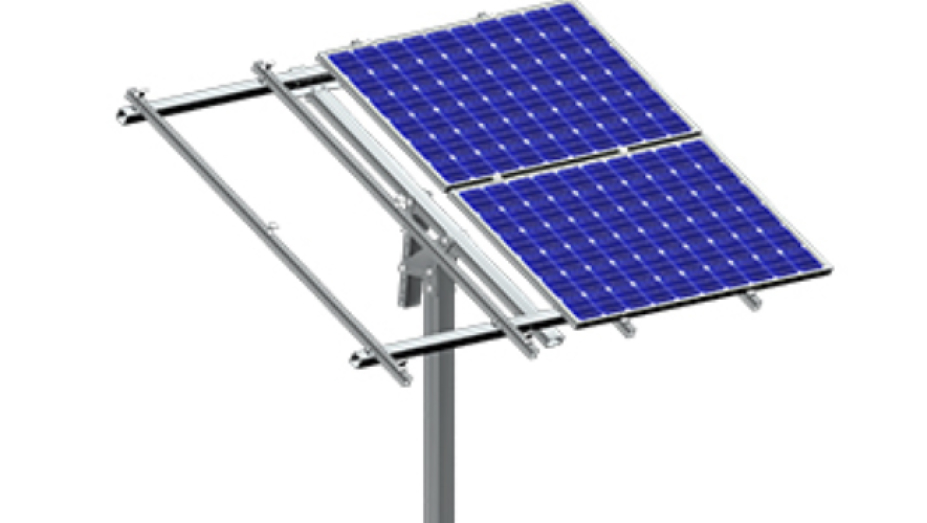

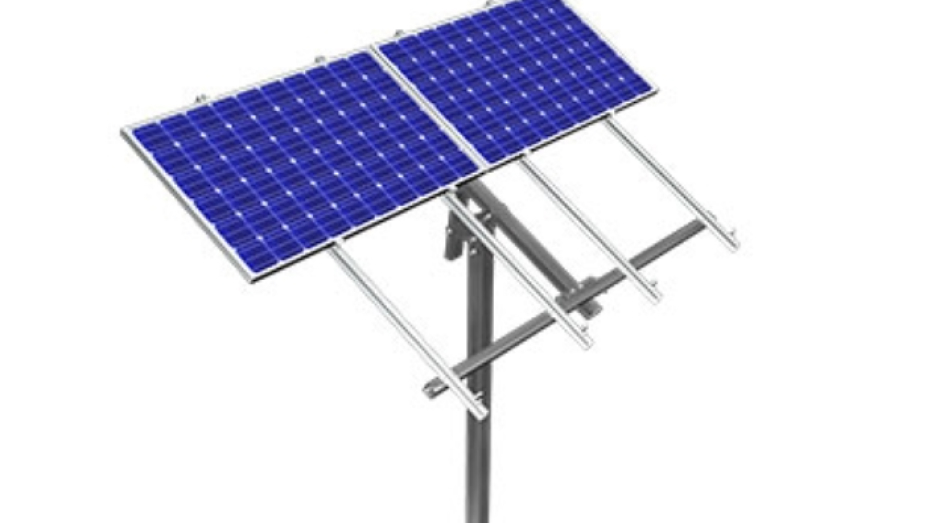

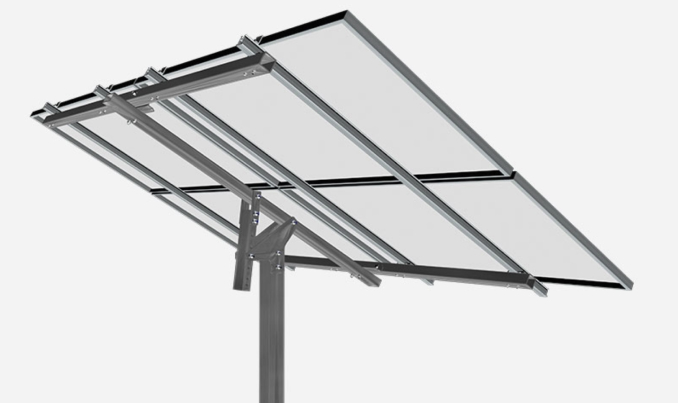

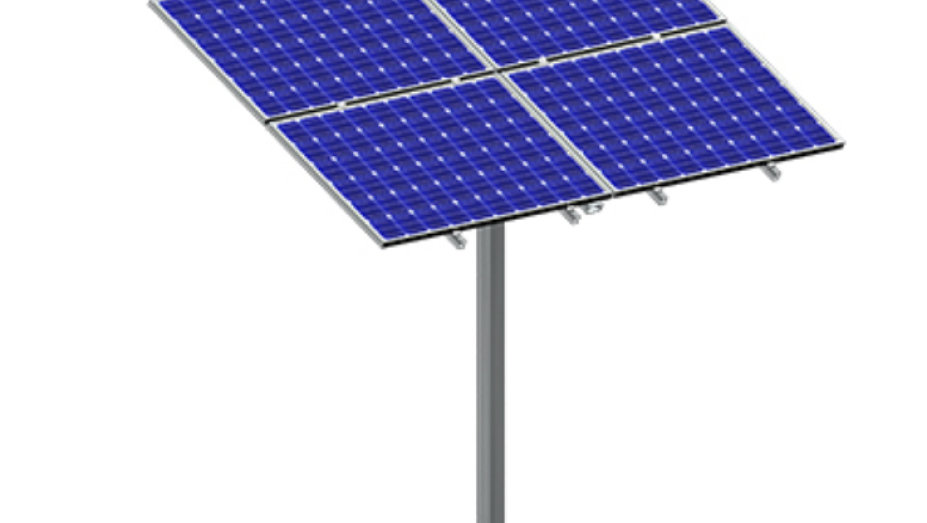

Ground photovoltaic support system - single column
Overview

It is a solution specifically developed for large-scale commercial and public utility power plants, suitable for various small hill and uneven area projects.

Product Features
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Strong adaptability to the environment, high power generation efficiency
Professional structural design
Designed with a single column structure
Fully compatible with different photovoltaic modules
Parameter
Installation location
Ground level
Installation foundation
Piling, cement foundation, spiral ground pile
Installation angle
10-60 °
Wind load
32m/s
Snow load
1.3KN/m2
Ground clearance
200-2000mm
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C 8955:2017, International Building Code IBC 2009, California Building Code CBC 2010
Support material
Q235B (hot-dip galvanized), AI6005-T5 (surface anodized)
Fastener Material
SUS304&Zinc Nickel Alloy&Hot Dip Galvanized
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
