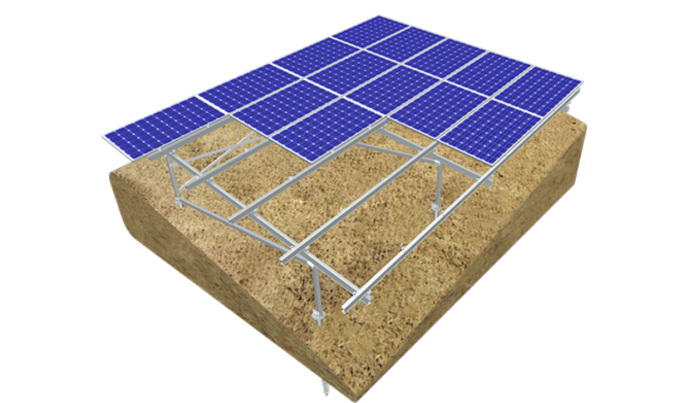

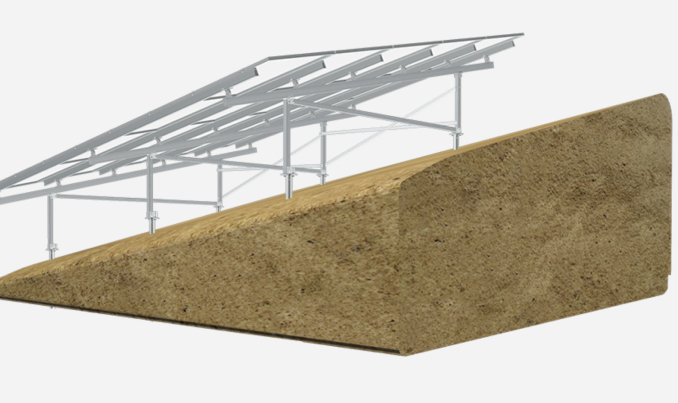

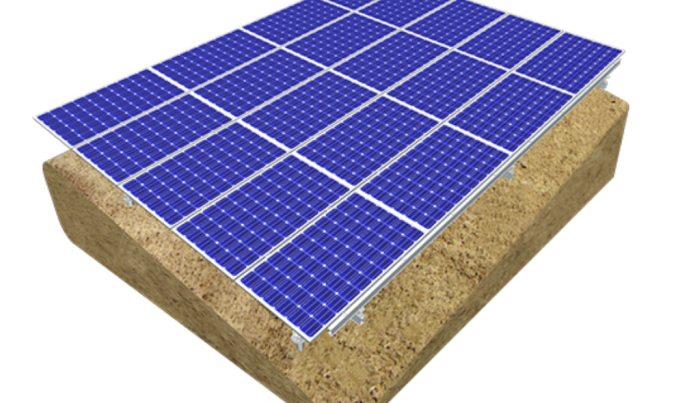

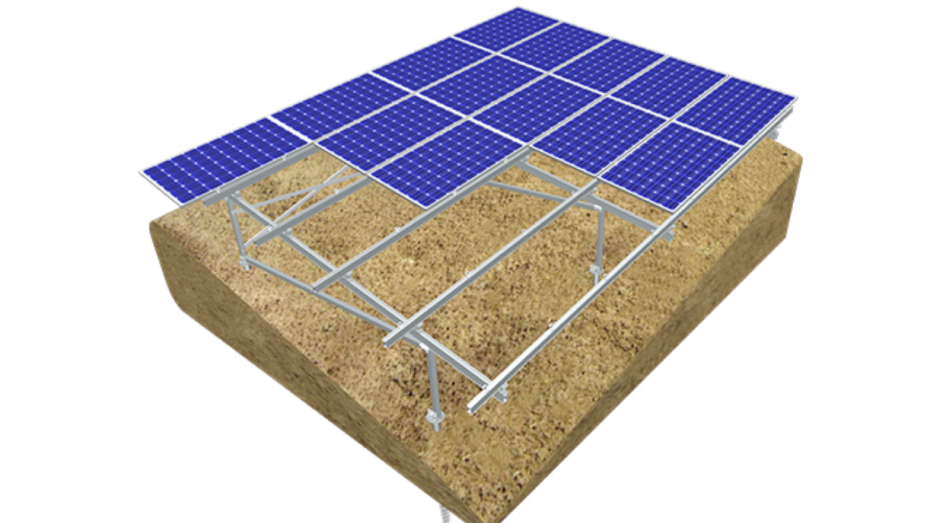

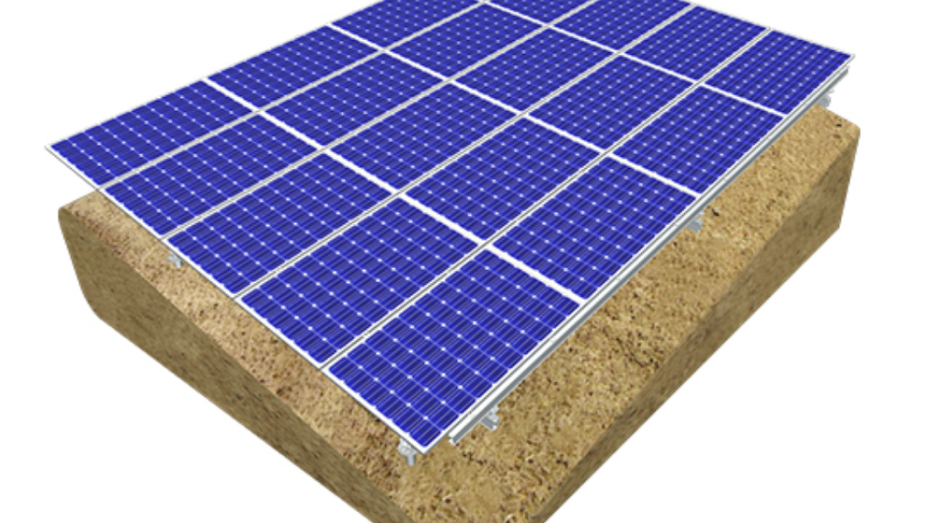

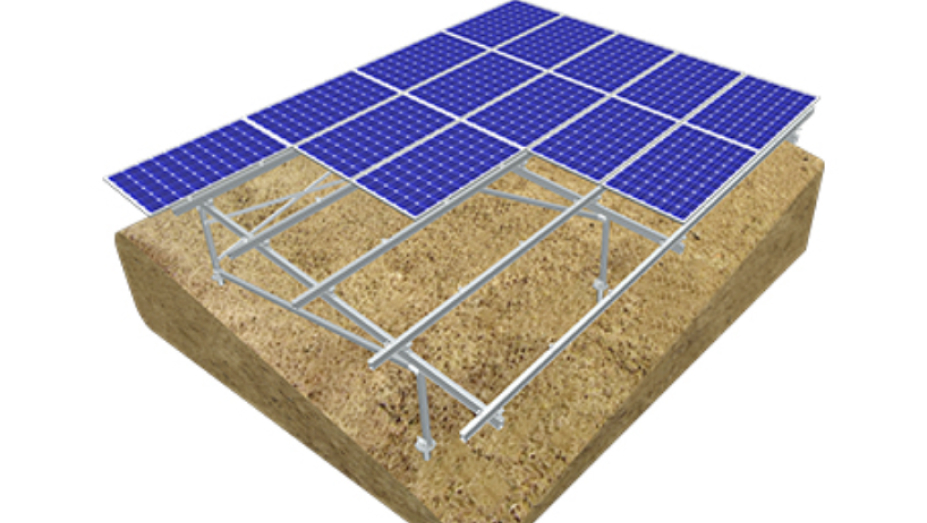

Slope ground photovoltaic support system
Overview
Mainly suitable for the installation of sloping roofs or sloping ground power plants. This product also has a high degree of pre installation characteristics, suitable for installation areas with higher requirements for wind and snow resistance, and can adjust the entire system in the front, back, left, right, and up and down directions, greatly meeting the requirements of the inclined drape project.
Product Features
Advantage
Parameter
Adapt to the scene
Advantage
Highly pre installed to save installation time
The fixing of the longitudinal beam does not require drilling
Unique adjustment structure design to solve the problem of sloping surfaces
Flexible on-site adjustment
Parameter
Installation location
sloping roof, sloping ground
Installation foundation
Cement foundation, spiral ground pile
Installation angle
0-60 °
Ground clearance
500-2000mm
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C 8955:2017, International Building Code IBC 2009, California Building Code CBC 2010
Support material
AI6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
