TPO roof fixed support system
Overview

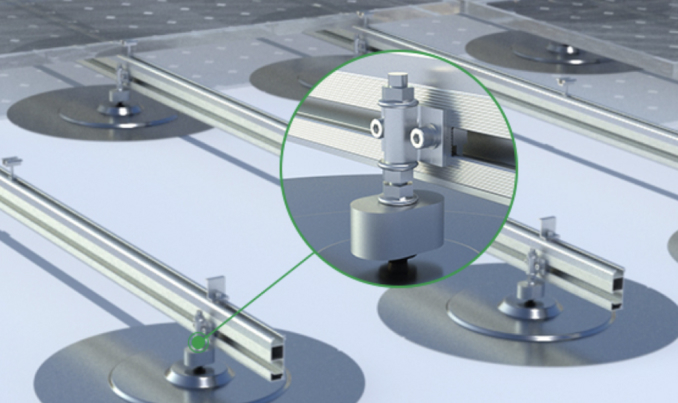

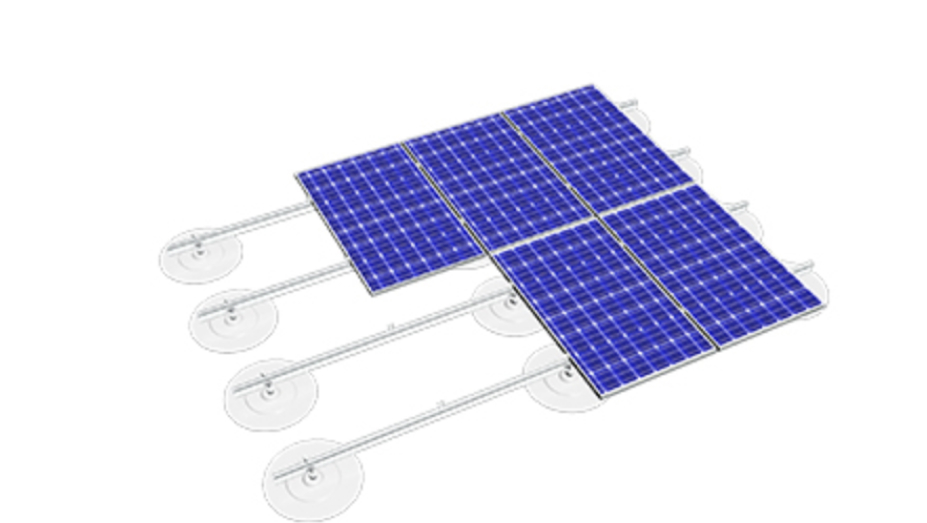

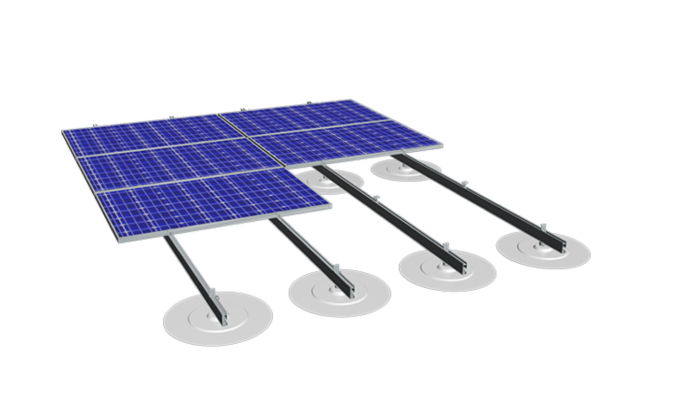

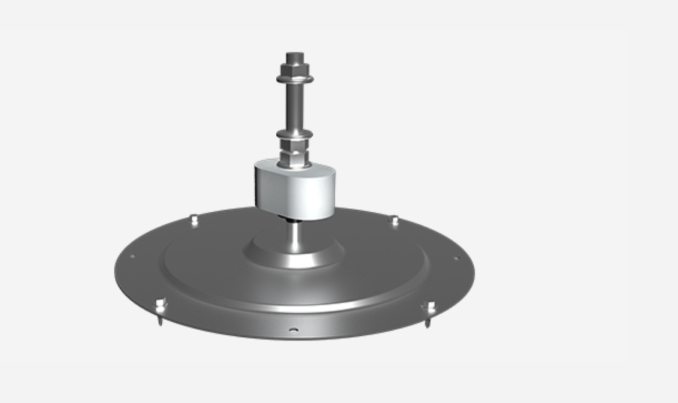

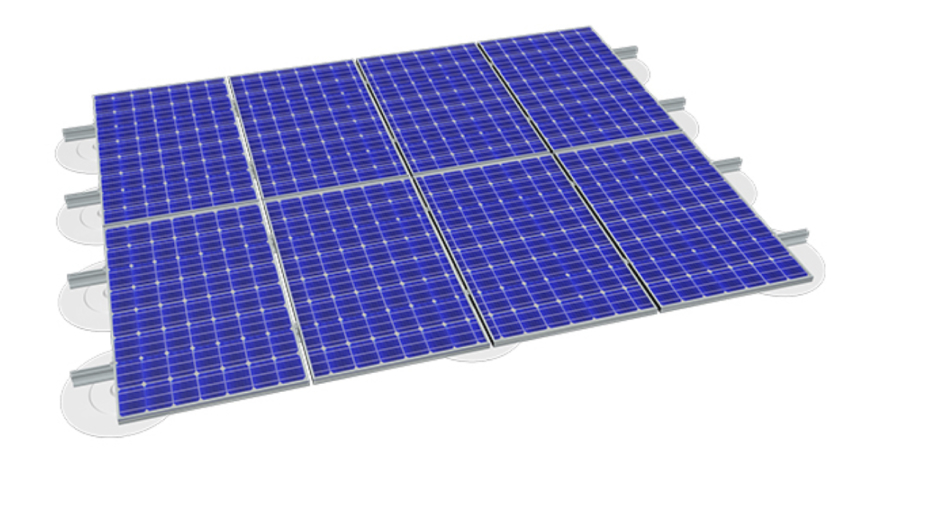

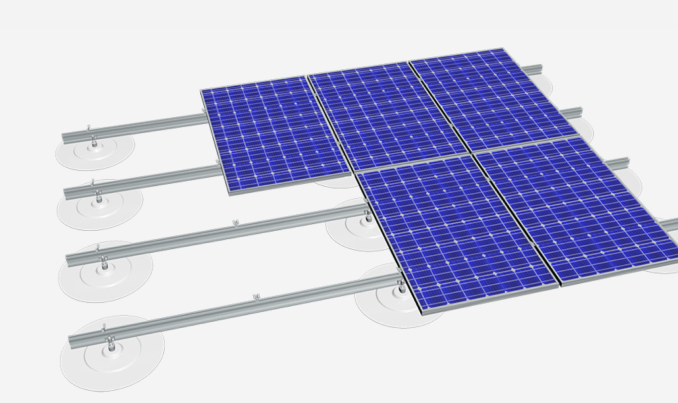

The TPO roof fixed support system is mainly suitable for trapezoidal colored steel tile roofs laid with TPO waterproof rolls. The main structural material is stainless steel+aluminum alloy. Through professional design, the TPO roof fixed support is perfectly connected with the trapezoidal colored steel tile roofs laid with TPO waterproof rolls. The waterproof structural design allows you to avoid the trouble of roof water seepage caused by installation, achieving your requirements for installation and protection of the roof. The design scheme tailored to local conditions and excellent structural strength calculation help you minimize the installation time and cost of the project to the greatest extent. The unique design of patented accessories brings you more fast installation experience.

Product Features
Rectangle
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Save construction costs and time
  • We will provide you with installation manuals and system solutions, making on-site construction simple and reducing project costs with less construction time.
Fully compatible with different photovoltaic modules
  • Can freely and flexibly support various types of photovoltaic modules.
Parameter
Installation location
Color steel tile roof
Installation foundation
Trapezoidal colored steel tile roof with TPO waterproof roll material
Installation angle
0 °
Wind load
60m/s
Snow load
1.6KN/m2
Applicable battery panel types
Framed, frameless
Battery panel layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code: IBC 2009, California Building Code: CBC 2010;
Support material
AL6005-T5 (surface anodized)
Fastener material
Stainless steel SUS304
Material of spare parts
AL6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
Adapt to the scene
.
