Ground photovoltaic support system - NPGT4
The ground photovoltaic support system NPGT4 is a low-cost product optimized on the basis of PGT4. Suitable for installation in small and medium-sized photovoltaic power plants. Fully optimize the design of the support system to meet increasingly strict price requirements. Like other products, this model also has a highly pre installed structure, effectively shortening installation time and saving installation costs.
Details

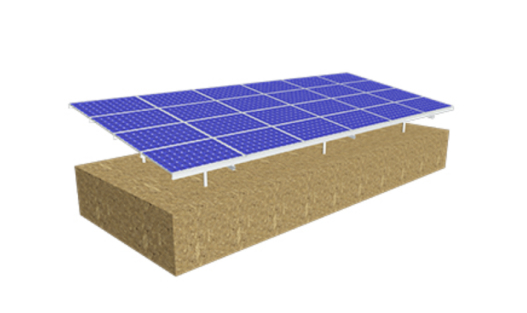

C-shaped steel ground support
Fix the fixed support on the cement foundation (pre embedded bolts) Fix the front and rear pillars on the fixed support using M10 * 30 hexagonal bolts Fix the movable support onto the column with M10 * 70 hexagonal socket bolts Fix the slant support on the diagonal beam and rear column with M10 * 30 hexagon socket bolts and spring nuts Fix the guide rail on the inclined beam with M8 * 25 type bolts
Details
Cement floor adjustable angle bracket
Fix the U-shaped base with teeth on the cement floor using expansion screws Fix the guide rail onto the toothed part with M8 * 25 hexagonal bolts, spring washers, and slider nuts, paying attention to the installation direction Fix the assembled U-shaped base and adjusting part on the cement storefront with expansion bolts Fix the guide rail onto the toothed part with M8 * 25 hexagonal bolts, flat washers, spring washers, and slider nuts, paying attention to the installation direction Fix the edge pressing block and medium pressure block for assembly on the guide rail
Details

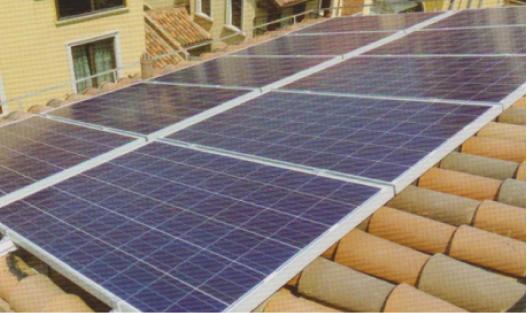

Glazed tile roof support system
Install the glazed tile hook Install the glazed tile hook and guide rail Installing guide rails Fix and install solar panels using middle and side pressure block components
Details
